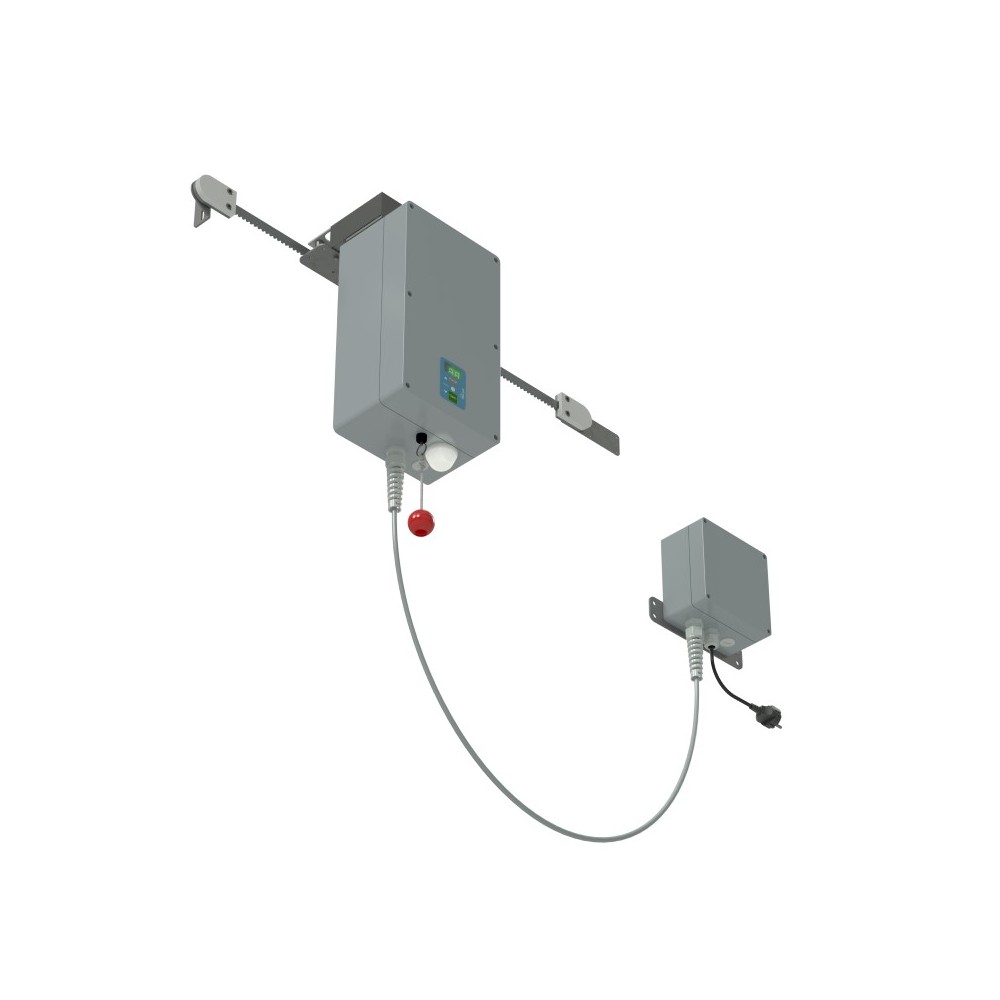

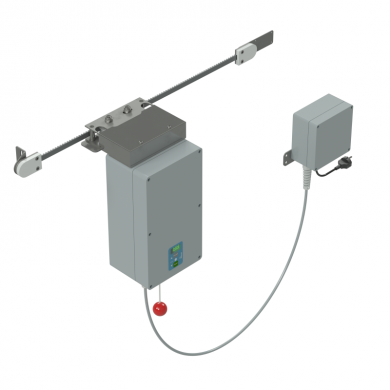

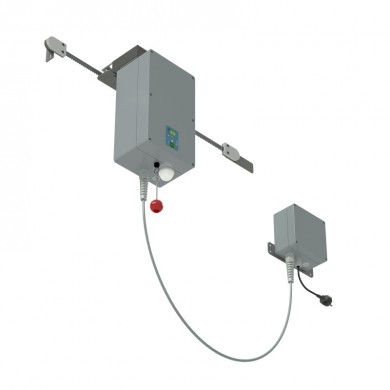

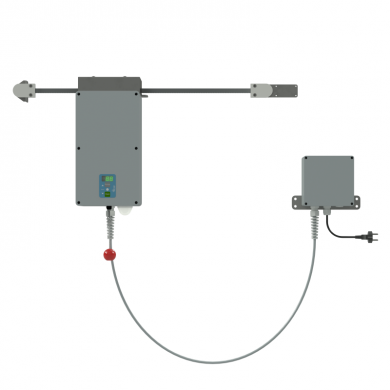

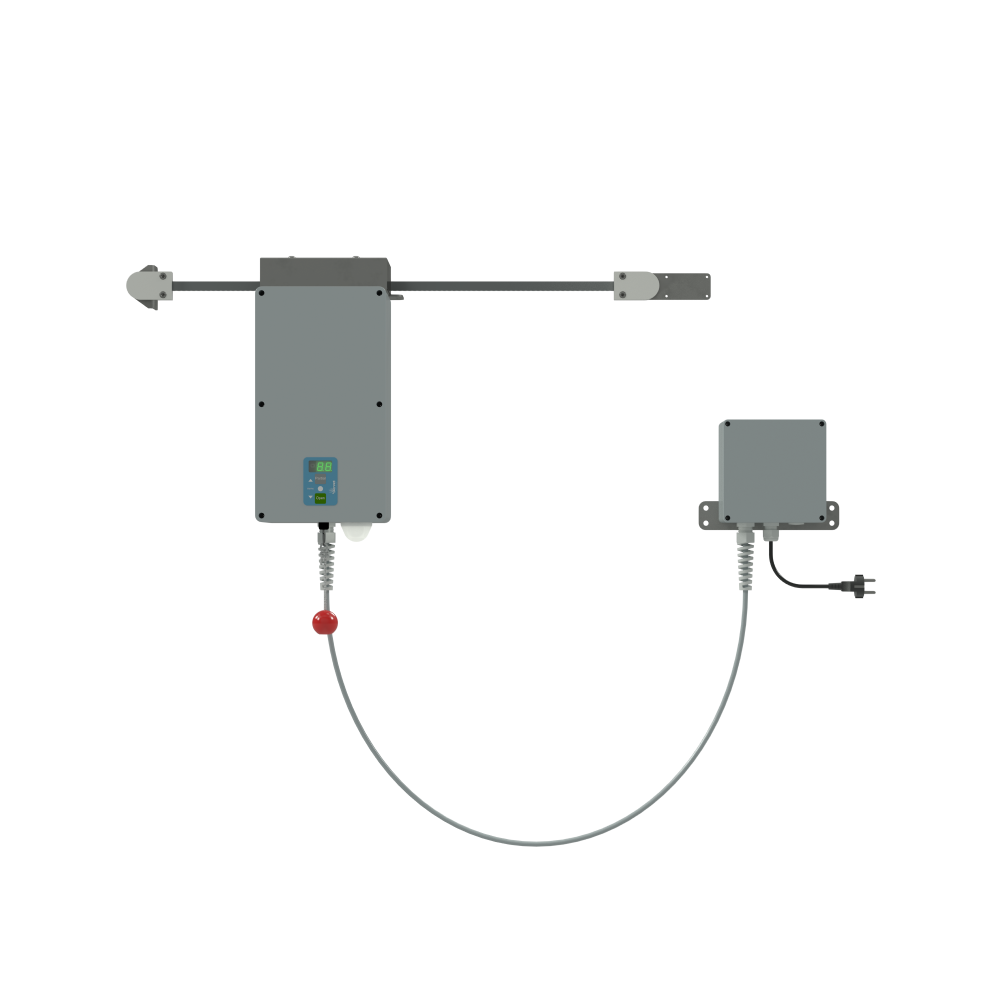

GECKO 1:16 automation
A1X2624
- Innovative automation for refrigerated sliding doors fixed on the edge of the door that is dragged along a single 5-meter toothed belt section

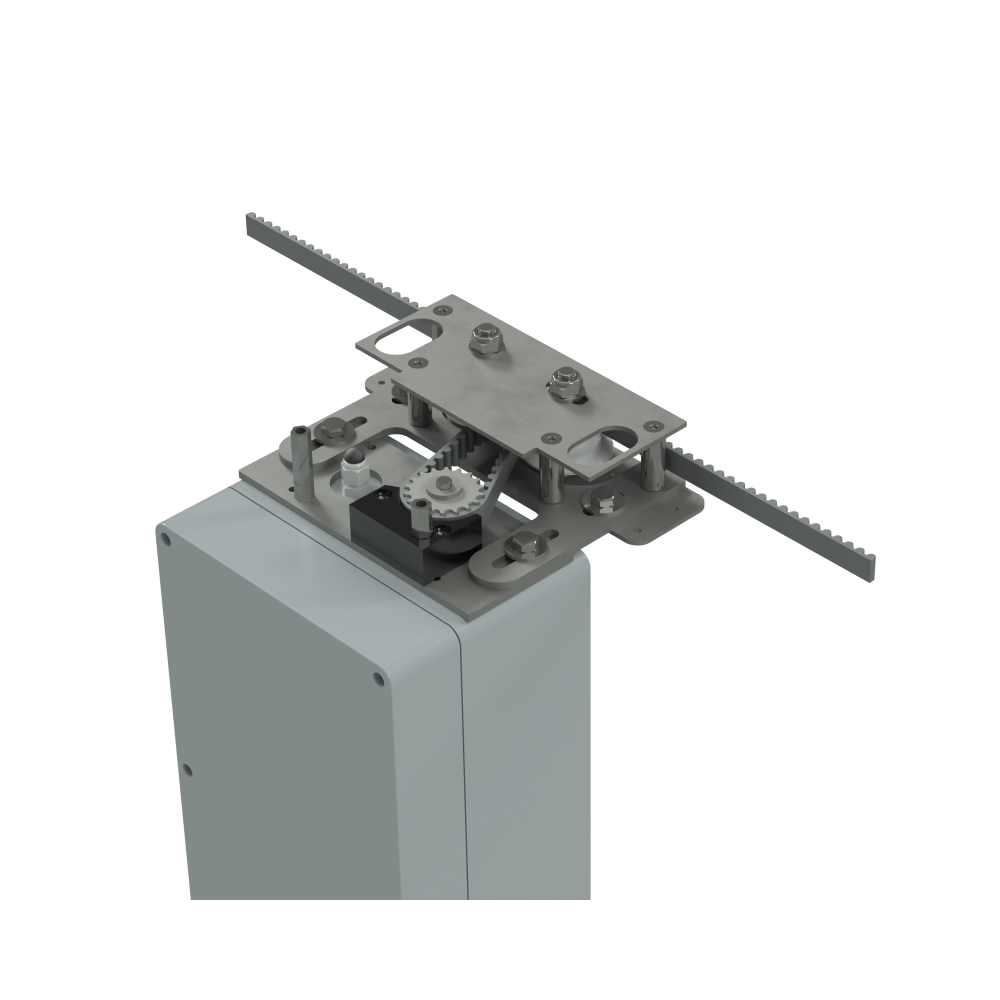

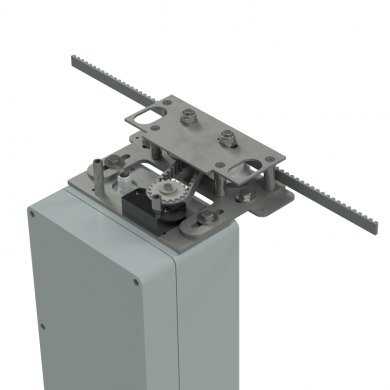

- IP65 plastic container which houses the gearmotor, the control electronics, the transmission and the belt tensioner
- Maximum leaf weight 160 Kg
- Maximum speed 0.18 m / "
- Adjustable for leaf thickness from 60 to 105mm
- Planetary reduction gear ratio 1:10
- 150 W DC motor with integrated encoder (A1X2455)
- 24V DC control unit (A1X21F5)
- 433 MHz receiver for radio control
- Display and push-button panel for control and programming
- On-board LED flashing light (A1X4710)
- On-board cable push-button
- Extra-flexible cable for connection to the power supply panel
- Power supply 100-240 Vac 400 VA 50/60 Hz
- Protection degree IP65
- Temperature -10 + 50 ° C
- Articulated plates for anchoring the belt to the door frame in AISI-304 stainless steel
- Transmission and structure in AISI-304 stainless steel.
