Sliding Doors

They are the most used solution as they allow large dimensions and be automatic. Built around a sturdy stainless steel frame with thermal break, they can be made in various types. Easy to install, robust and easily repairable.

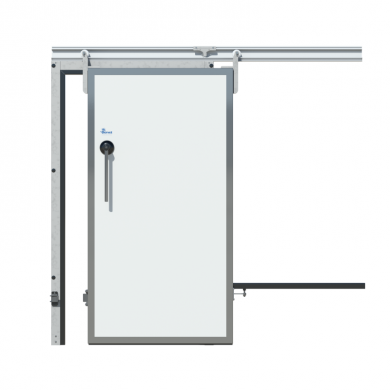

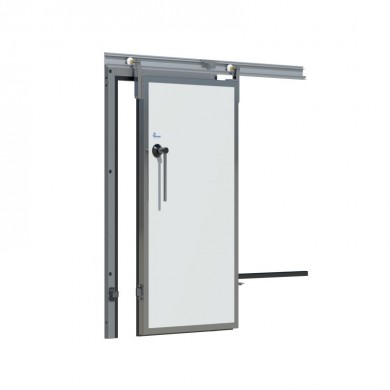

S manual sliding cooler...
A13000A
- Sliding door designed to close large sized cold rooms with positive temperature, for uses where an excellent hermetic and thermal seal is required together with sturdiness and reliability, version for panel or masonry mounting. The particular constructive shape of the track ensures that when closing the door it lowers and approaches the frame, pressing the gaskets and guaranteeing the perfect sealing of the door
- Door thickness 80mm in polystyrene density 33 kg/mc
- Door edge in AISI304 steel
- Faces in white fiberglass
- Frame with thermal break in AISI304 steel
- Rail in anodized aluminum
- Rear guide raised 500mm from the floor
- Connection bended sheets in AISI304 steel for walls up to thickness 100mm
- SN0 Flush floor threshold
- Hardware and bolts in AISI304 steel and thermoplastic resin.

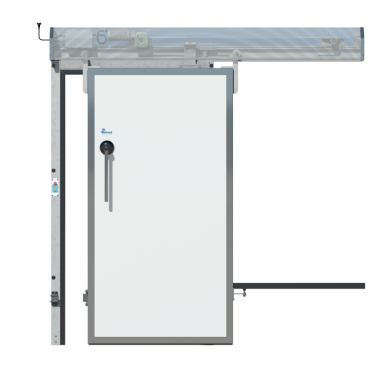

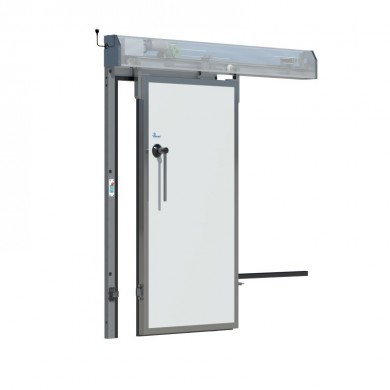

SA automatic sliding cooler...
A13000N
- Sliding door designed to close large sized cold rooms with positive temperature, for uses where an excellent hermetic and thermal seal is required together with sturdiness and reliability, version for panel or masonry mounting. The particular constructive shape of the track ensures that when closing the door it lowers and approaches the frame, pressing the gaskets and guaranteeing the perfect sealing of the door
- Door thickness 80mm in polystyrene density 33 kg/mc
- Door edge in AISI304 steel
- Faces in white fiberglass
- Frame with thermal break in AISI304 steel
- Rail in anodized aluminum
- 24Vdc automation that controls correct positioning, slowdown and obstacle detection
- IP65 control pushbutton panel embedded in the door frame with display, single-phase power supply 100-240 V 50-60 Hz
- IP65 pushbutton inside the cold room
- IP65 electrical panel mounted in the rail, pre-wired and ready to use
- IP67 photocells pre-wired and embedded in the framerear guide raised 500mm from the floor
- Connection bended sheets in AISI304 steel for walls up to thickness 100mm
- SN0 Flush floor threshold
- Hardware and bolts in AISI304 steel and thermoplastic resin.

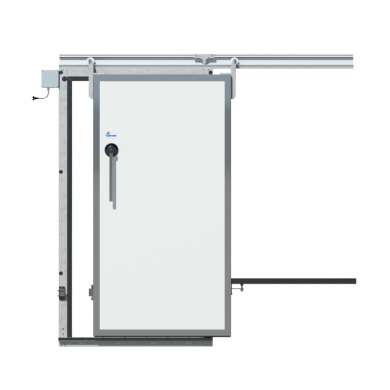

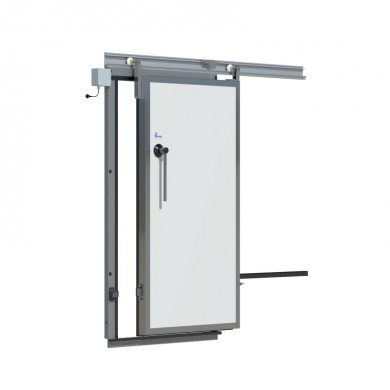

SBT Manual sliding freezer...
A1300BA
- The ideal solution for large cold rooms, where robustness and reliability are required. The particular constructive shape of the rail ensures that when closing the door it lowers and approaches the frame, pressing the gaskets and guaranteeing the perfect sealing of the door
- Door thickness 100mm in polystyrene density 33 kg/mc
- Door edge in AISI304 steel
- Faces in white fiberglass
- Frame with thermal break in AISI304 steel
- Rail in anodized aluminum
- Rear guide raised 500mm from the floor
- Connection bended sheets in AISI304 steel for walls up to thickness 200mm
- 24V heating cable inserted in the frame
- SB1 flush floor threshold with double 24V heating cable
- Hardware and bolts in AISI304 steel and thermoplastic resin.

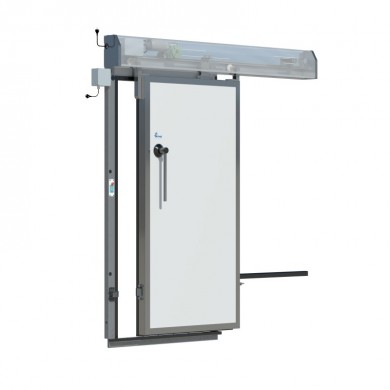

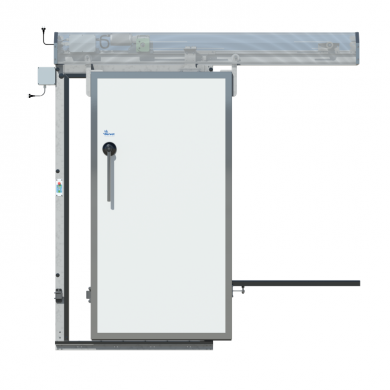

SBTA automatic sliding...
A1300BN
- The ideal solution for large cold rooms, where robustness and reliability are required. The particular constructive shape of the rail ensures that when closing the door it lowers and approaches the frame, pressing the gaskets and guaranteeing the perfect sealing of the door
- Door thickness 100mm in polystyrene density 33 kg/mc
- Door edge in AISI304 steel
- Faces in white fiberglass
- Frame with thermal break in AISI304 steel
- Rail in anodized aluminum
- 24Vdc automation that controls correct positioning, slowdown and obstacle detection
- IP65 control pushbutton panel embedded in the door frame with display, single-phase power supply 100-240 V 50-60 Hz
- IP65 pushbutton inside the cold room
- IP65 electrical panel mounted in the rail, pre-wired and ready to use
- IP67 photocells pre-wired and embedded in the framerear guide raised 500mm from the floor
- Connection bended sheets in AISI304 steel for walls up to thickness 200mm
- 24V heating cable inserted in the frame
- SB1 flush floor threshold with double 24V heating cable
- Hardware and bolts in AISI304 steel and thermoplastic resin.

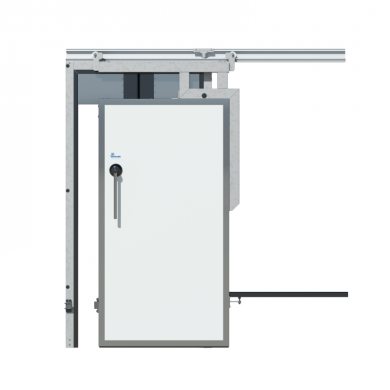

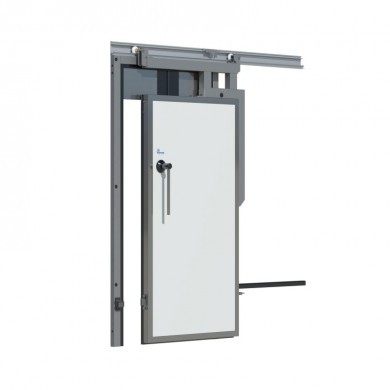

SBIN manual sliding door...
A1L000C
- The ideal solution for large cold rooms, where robustness and reliability are required. The particular constructive shape of the rail ensures that when closing the door it lowers and approaches the frame, pressing the gaskets and guaranteeing the perfect sealing of the door
- Manual sliding door with meat rail passage
- Gooseneck system that allows the passage of the rail without interruption
- Door thickness 80mm in polystyrene density 33 kg/mc
- Door edge in AISI304 steel
- Faces in white fiberglass
- Frame with thermal break in AISI304 steel
- Rail in anodized aluminum
- Rear guide raised 500mm from the floor
- Connection bended sheets in AISI304 steel for walls up to thickness 100mm
- SN0 Flush floor threshold
- Hardware and bolts in AISI304 steel and thermoplastic resin.

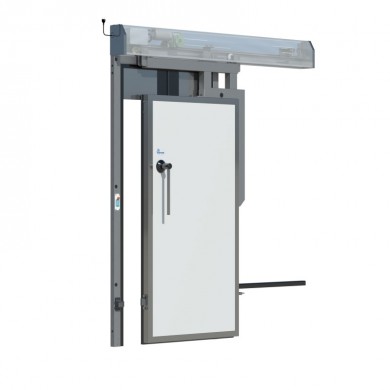

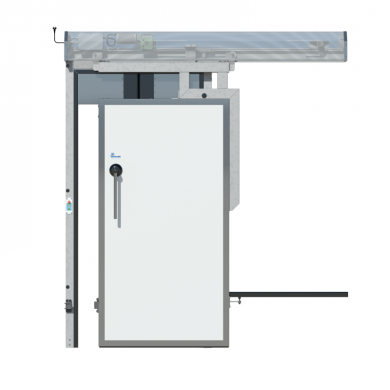

SBINA automatic sliding...
A1L000P
- The ideal solution for large cold rooms, where robustness and reliability are required. The particular constructive shape of the rail ensures that when closing the door it lowers and approaches the frame, pressing the gaskets and guaranteeing the perfect sealing of the door
- Automatic sliding door with meat rail passage
- Gooseneck system that allows the passage of the rail without interruption
- Door thickness 80mm in polystyrene density 33 kg/mc
- Door edge in AISI304 steel
- Faces in white fiberglass
- Frame with thermal break in AISI304 steel
- Rail in anodized aluminum
- 24Vdc automation that controls correct positioning, slowdown and obstacle detection
- Single-phase power supply 100-240 V 50-60 Hz
- IP65 control pushbutton panel embedded in the door frame with display, IP65 pushbutton inside the cold room
- IP65 electrical panel mounted in the rail, pre-wired and ready to use
- IP67 photocells pre-wired and embedded in the framerear guide raised 500mm from the floor
- Connection bended sheets in AISI304 steel for walls up to thickness 100mm
- SN0 Flush floor threshold
- Hardware and bolts in AISI304 steel and thermoplastic resin.
