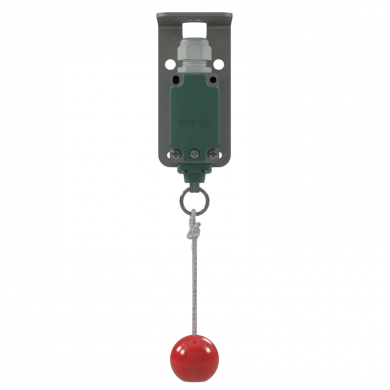

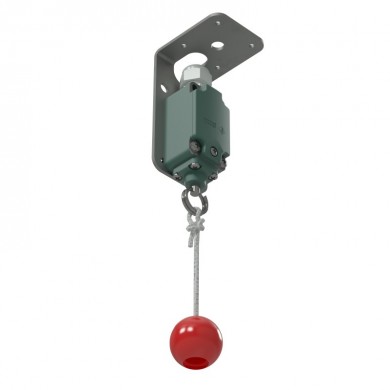

Pull cord switch
A1V0005
- 1NO + 1NC snap action (B5)
- Complete with stainless steel bracket for ceiling fixing, rope and knob
- Cable gland M20
- Degree of protection IP65
- Operating temperature -35 ° C + 80 ° C
Automation parts
Designed to be connected to our automations but also to third-party automations after careful compatibility check
-
-

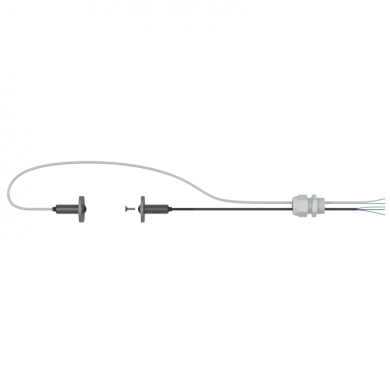

Stainless steel PNP photocells
A1V0010- Infrared barrier up to 15 meters, composed of compact sensors with incorporated electronics
- Cable length 15m
- Power supply 10-30 Vdc
- PNP NO output
- Operating temperature -25 + 50 ?? C
- Degree of protection IP 67
- Complete with cable gland, flange and stainless steel screws.
-

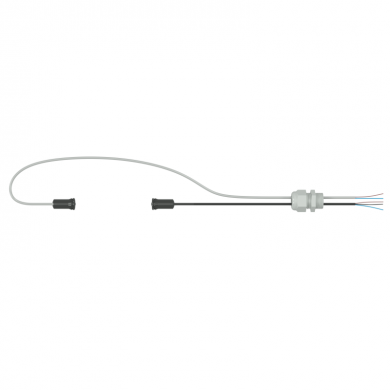

Plastic PNP photocells
A1V0011- Infrared barrier up to 15 meters, composed of compact sensors with incorporated electronics
- Cable length 15m
- Power supply 10-30 Vdc
- PNP NO output
- Operating temperature -25 + 50 ° C
- Degree of protection IP 67
- Complete with cable gland.
-

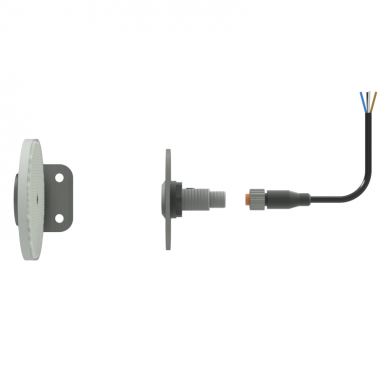

MOBILE reflection photocells
A1V0014- Reflection infrared barrier with reflector up to 6 meters, composed of compact sensor with incorporated electronics with M12 plug
- Sensitivity adjustable from 0.5 to 6m
- Power supply 10-30 Vdc
- PNP NO + NC output
- Operating temperature -25 + 50 ° C
- Degree of protection IP 67
- Complete with 80mm diameter reflector, 10m connection cable with M12 plug and AISI-304 stainless steel brackets
-

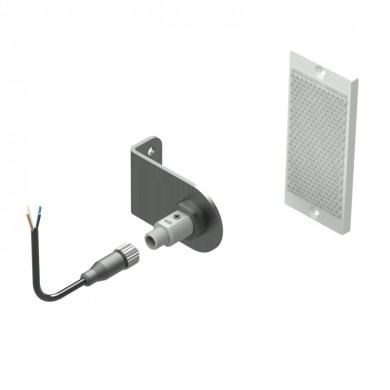

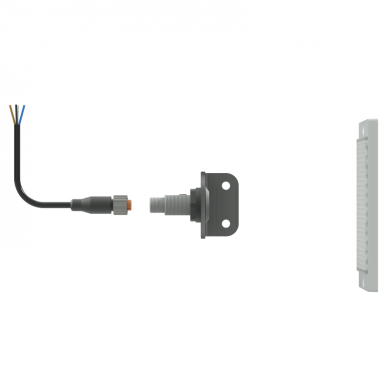

FIXED reflection photocell kit
A1V0015- Reflection infrared barrier with reflector up to 6 meters, composed of compact sensor with incorporated electronics with M12 plug
- Sensitivity adjustable from 0.5 to 6m
- Power supply 10-30 Vdc
- PNP NO + NC output
- Operating temperature -25 + 50 ° C
- Degree of protection IP 67
- Complete with 55x125mm reflector, 10m connection cable with M12 plug and AISI-304 stainless steel brackets
-

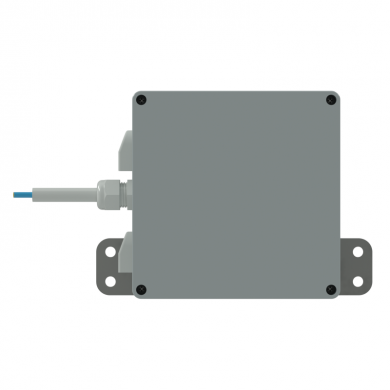

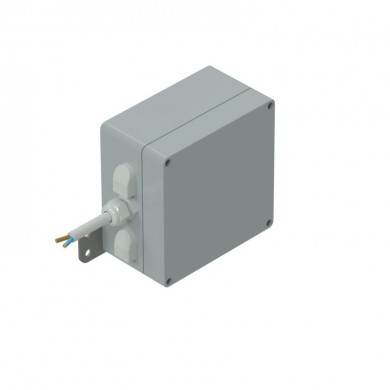

Buffer batteries
A1V0016- Kit for the operation of the automation in the event of a black out, it consists of a container for the battery pack and a battery charger board to be installed on the A1X21F5 board
- 2 12V 3.2 Ah AGM lead gel batteries without maintenance, estimated life 3/5 years
- 25A blade fuse
- Ventilated container in plastic material, complete with cable glands and cables to be connected to the AIX21F5 series electronic board
- Operating temperature -15 + 50 ° C
-

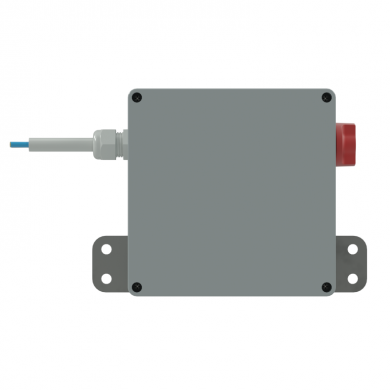

24 V Buffer SUPERCAP
A1V0017- Kit for the operation of the automation in the event of a blackout for some openings, it consists of a charging board, 9 SUPERCAP 2.7 V 500 F without electrolyte and without maintenance
- Estimated life 10 years
- Sealed container in IP65 plastic material, complete with disconnector, cable glands and cables to be connected to the electronic board of the AIX21G series
- Operating temperature -35 +60°C
-
48 V Buffer SUPERCAP
A1V0018- Kit for the operation of the automation in the event of a blackout for some openings, it consists of a charging board for SUPERCAP without electrolyte and without maintenance
- Estimated life 10 years
- Sealed container in IP65 plastic material, complete with disconnector, cable glands and cables to be connected to the electronic board of the AIX21G series
- Operating temperature -35 +60°C
