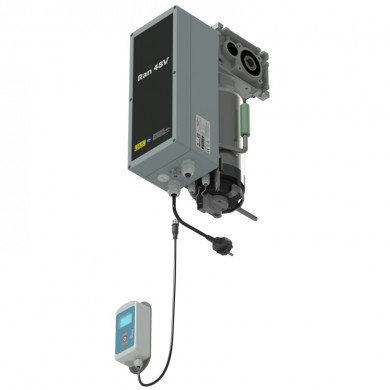

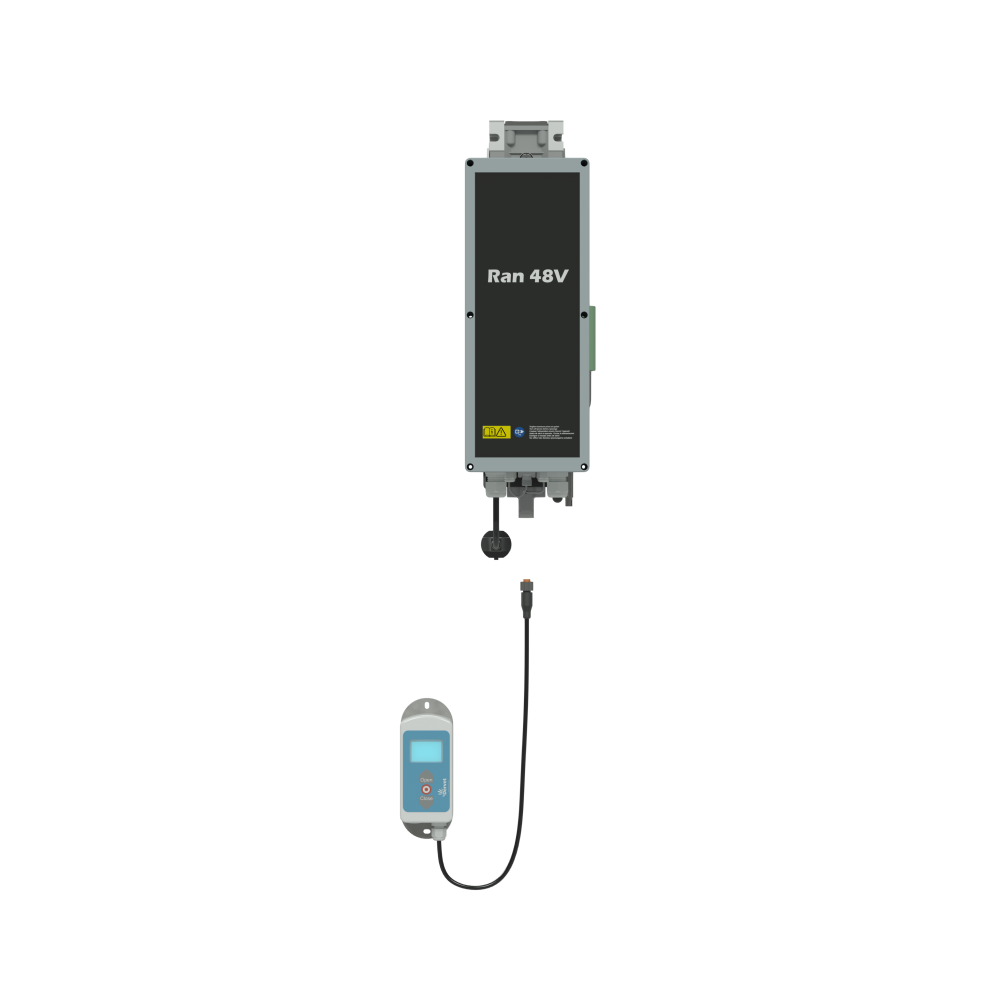

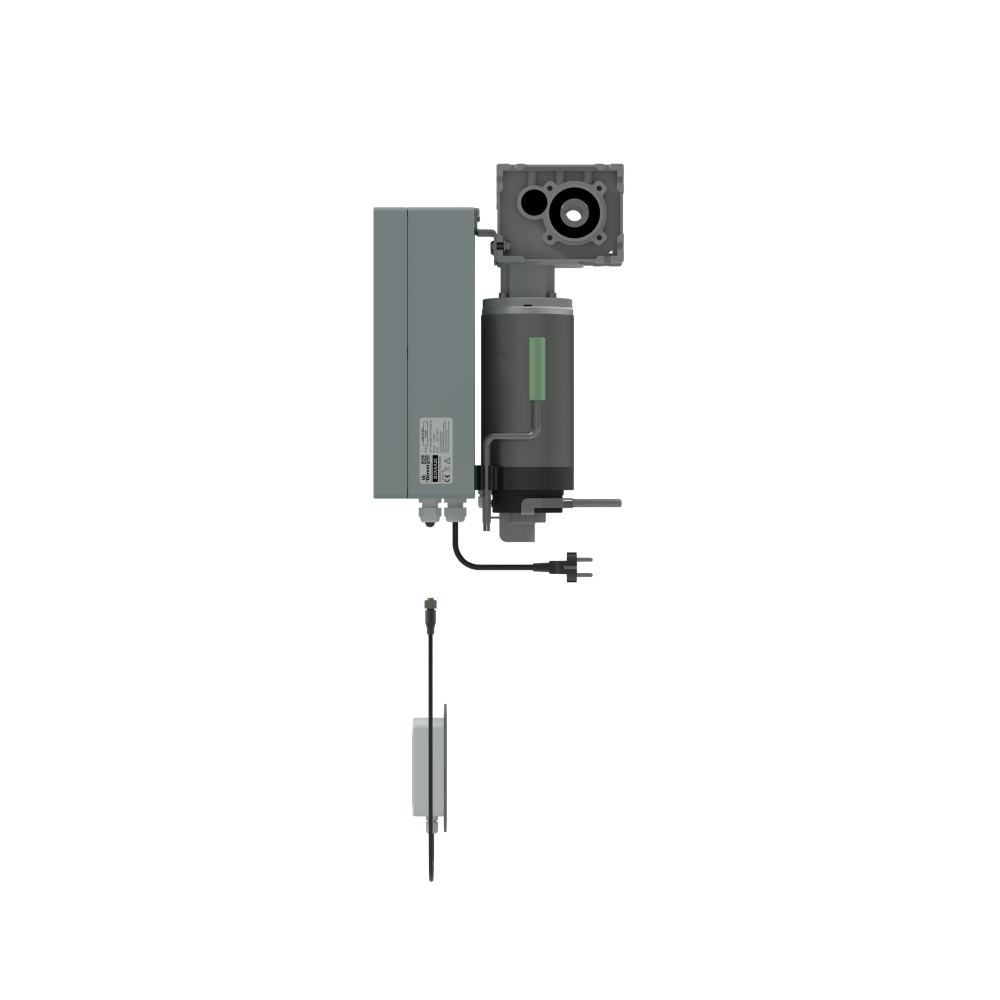

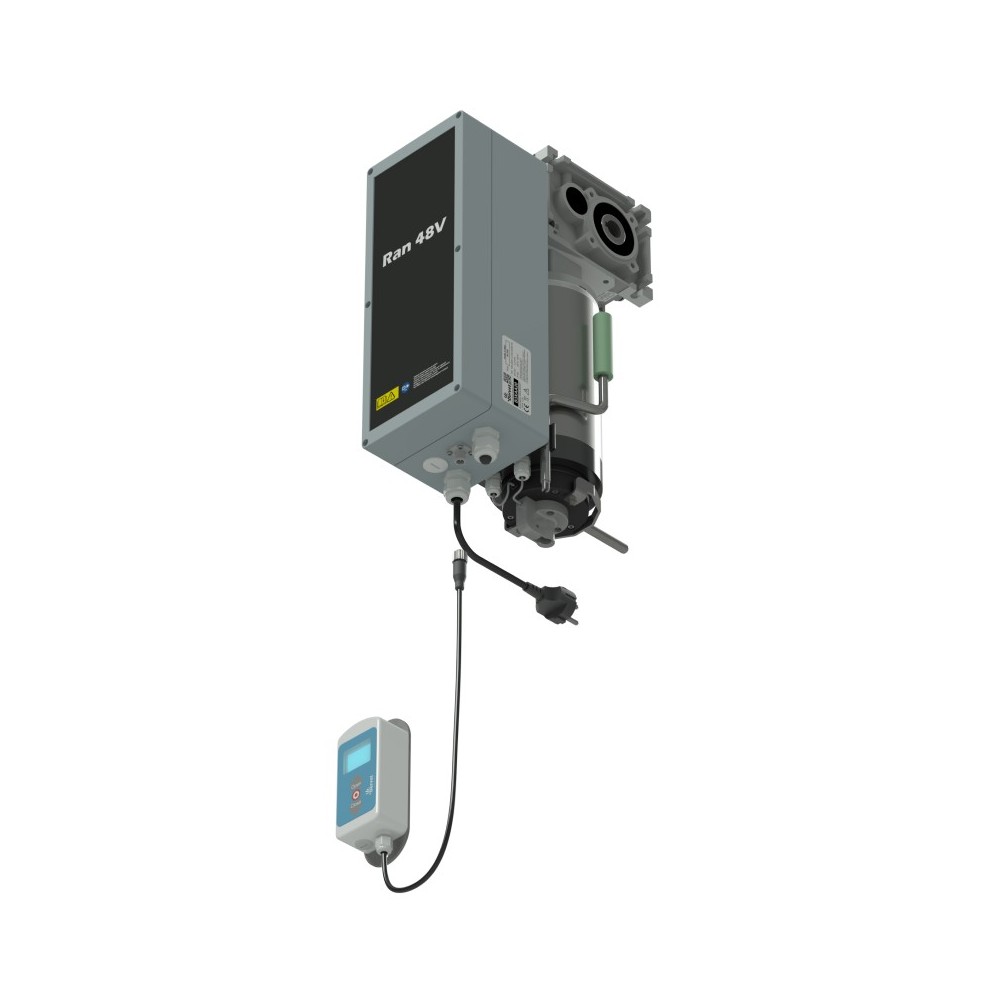

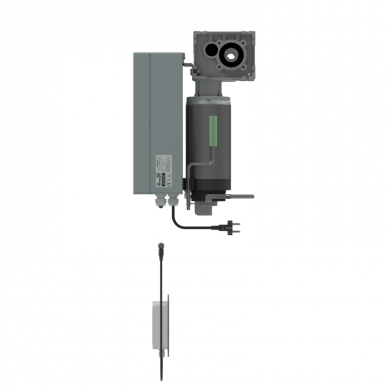

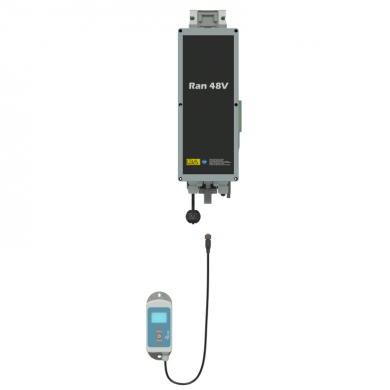

RAN-SMART automation

B3XAA20

SMART automation for roll-up doors
Maximum opening speed 250 RPM
Gear box 1:20 in painted aluminum and AISI-304 hollow shaft diameter 25
48Vdc 1200 W motor with integrated encoder
IP65 ermetic brake with manual lever release
IP65 control panel in plastic material IP65 incorporates power management, safety management and all controls for the perfect functioning of the system
External push-button panel with backlit LCD display that can be connected directly to the control panel via M12 connector
Stainless steel screws and fastners
Single-phase multi-voltage supply 100-240 V 50-60 Hz
Operating temperature -25 +60°C

DIM-B3XAA20

Dimensions
