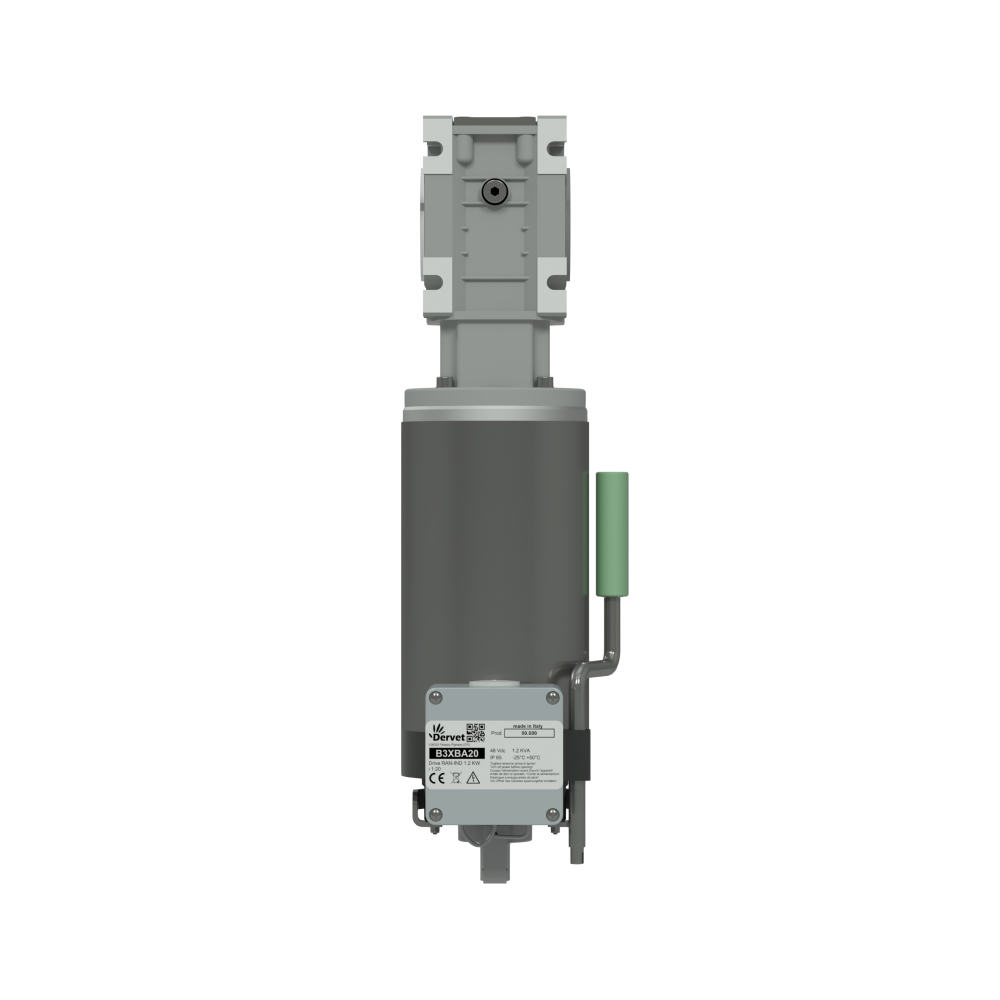

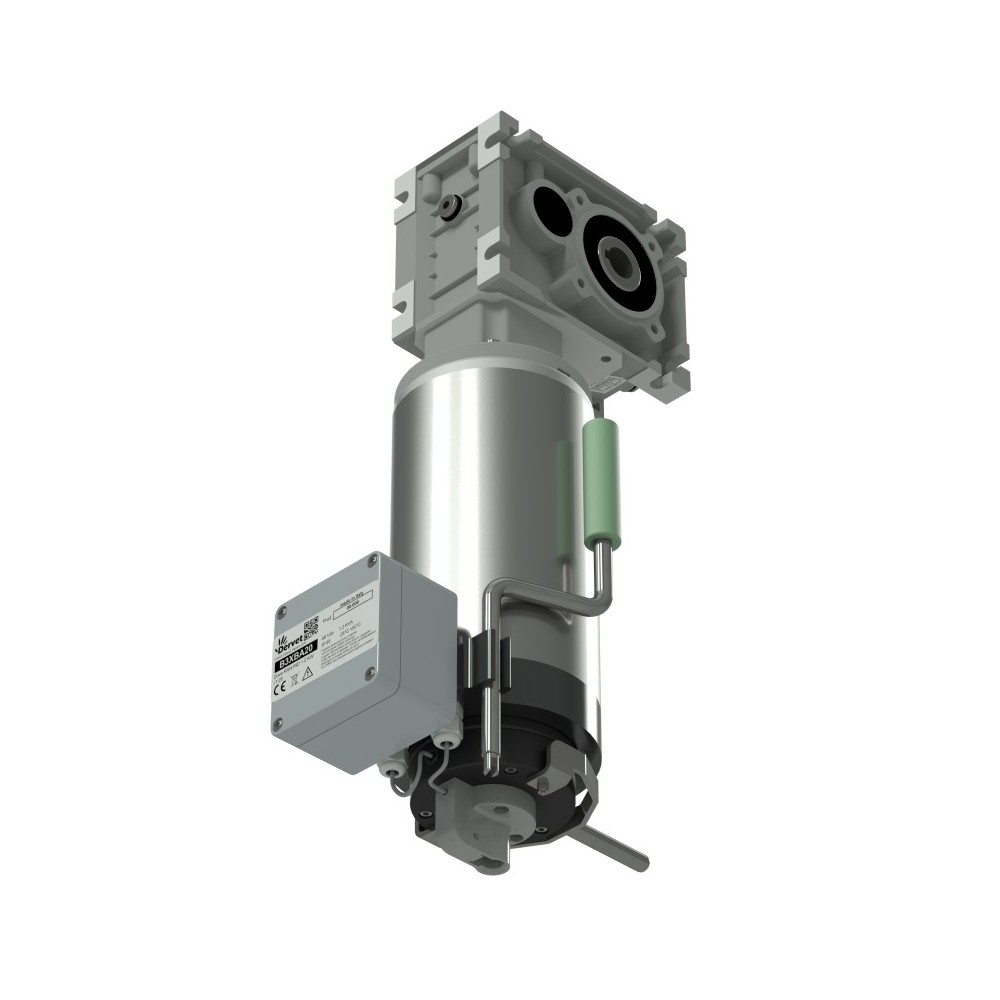

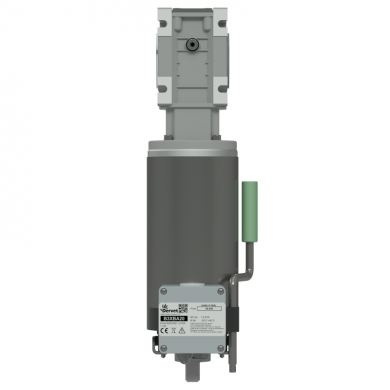

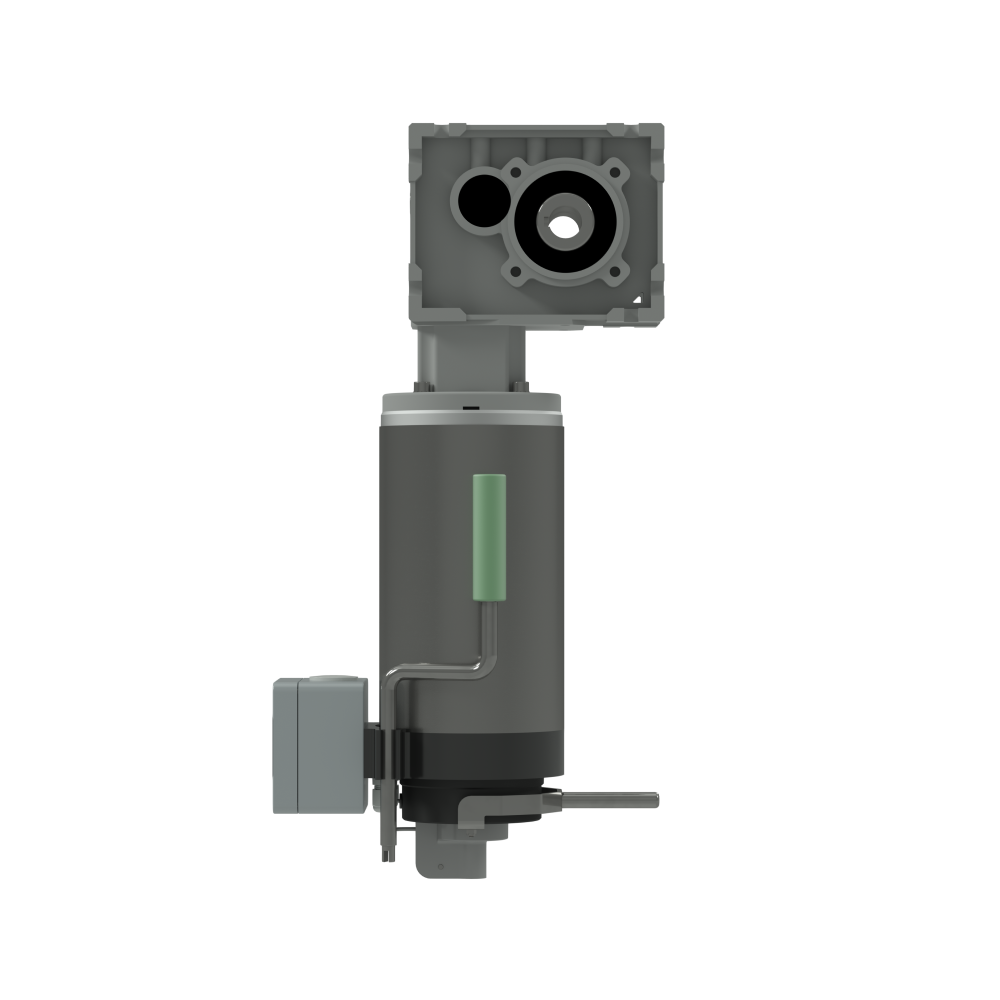

Drive RAN-IND 1.2 KW
B3XBA20
- Drive for roll-up doors
- Maximum opening speed 250 RPM
- Gear box 1:20 in painted aluminum and AISI-304 hollow shaft diameter 25
- 48Vdc 1200 W motor with integrated encoder
- IP65 hermetic brake with manual lever release
- IP65 junction box in plastic material
- Stainless steel screws and fastners
- Operating temperature -25 +50°C
