MARK-SEZ

for sectional door

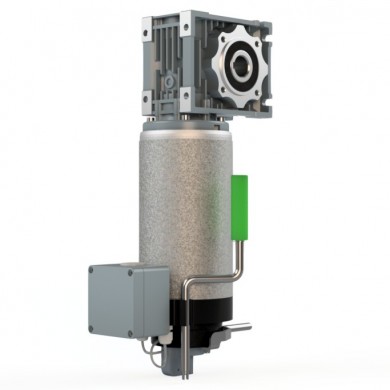

MARK-IND 24 0.6 Kw W 1:40...
- New
B332634
- Drive for roll-up doors
- Maximum opening speed 755 RPM
- Worm gear box 1:40 in painted aluminum and AISI-304 hollow shaft diameter 25
- 24Vdc 600 W motor with integrated encoder
- IP65 ermetic brake with manual lever release
- IP65 junction box in plastic material
- Stainless steel screws and fastners
- Operating temperature -25 +50°C
MARK SMART 24 0.6 Kw W 1:40...
- New
B362634
- SMART automation for sectional doors
- Maximum opening speed 75 RPM
- Worm gear box 1:40 in painted aluminum and AISI-304 hollow shaft diameter 25.4
- 24Vdc 600 W motor with integrated encoder
- IP65 ermetic brake with manual lever release
- IP65 control panel in plastic material IP65 incorporates power management, safety management and all controls for the perfect functioning of the system
- External push-button panel with OLED display that can be connected directly to the control panel via M12 connector
- Stainless steel screws and fastners
- Single-phase multi-voltage supply 100-240 V 50-60 Hz
- Operating temperature -25 +60°C
MARK-IND 24-H2 0.6 Kw...
- New
B3XQ226
- MARK-IND control unit (24 VDC, 0.6 kW) integrating power management, safety systems, and all controls for optimal system operation
- Internal space is provided for a supercapacitor-based uninterruptible power supply (UPS) to ensure a limited number of opening cycles during a power outage
- IP65-rated 300x300 mm ABS plastic enclosure
- Programming and control keypad with OLED graphic display
- Lockable disconnect switch
- Open command button
- Stainless steel hardware
- Multi-voltage single-phase power supply (100–240 V, 50–60 Hz)
- Operating temperature range: -25 to +50°C.
