MARK-ROL

for roll-up

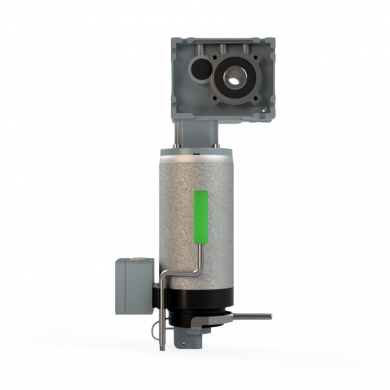

Drive MARK-IND 48 1.0 Kw B...
- New
B324A52
- Drive for roll-up doors
- Maximum opening speed 250 RPM
- Gear box 1:20 in painted aluminum and AISI-304 hollow shaft diameter 25
- 48Vdc 1000 W motor with integrated encoder
- IP65 ermetic brake with manual lever release
- IP65 junction box in plastic material
- Stainless steel screws and fastners
- Operating temperature -25 +50°C
RAN-SMART 48 1.0 KW B 1:20...
- New
B354A52
- SMART automation for roll-up doors
- Maximum opening speed 250 RPM
- Gear box 1:20 in painted aluminum and AISI-304 hollow shaft diameter 25
- 48Vdc 1000 W motor with integrated encoder
- IP65 ermetic brake with manual lever release
- IP65 control panel in plastic material IP65 incorporates power management, safety management and all controls for the perfect functioning of the system
- External push-button panel with OLED display that can be connected directly to the control panel via M12 connector
- Stainless steel screws and fastners
- Single-phase multi-voltage supply 100-240 V 50-60 Hz
- Operating temperature -25 +60°C

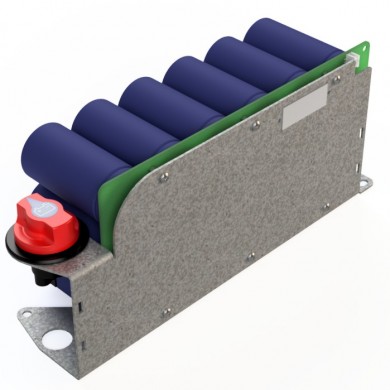

48V Buffer SUPERCAP
- New
B3XBQS4
- Kit for the operation of the automation in the event of a blackout for some openings, it consists of a charging board, 18 SUPERCAP 2.7 V 500 F without electrolyte and without maintenance
- Estimated life 10 years
- Sealed container in IP65 plastic material, complete with disconnector, cable glands and cables to be connected to the electronic board of the AIX21G series
- Operating temperature -25 +50°C
MARK-IND 48-H2 1.2 Kw...
- New
B3XQ24C
- MARK-IND control unit (48 VDC, 1.2 kW) integrating power management, safety systems, and all controls for optimal system operation
- Internal space is provided for a supercapacitor-based uninterruptible power supply (UPS) to ensure a limited number of opening cycles during a power outage
- IP65-rated 300x300 mm ABS plastic enclosure
- Programming and control keypad with OLED graphic display
- Lockable disconnect switch
- Open command button
- Stainless steel hardware
- Multi-voltage single-phase power supply (100–240 V, 50–60 Hz)
- Operating temperature range: -25 to +50°C.
