Automation parts

Designed to be connected to our automations but also to third-party automations after careful compatibility check

Active filters

  • Radio pull cord
    Radio pull cord
    A1V0065
    • Cable remote control, 12 bit fixed code (1024 combinations) programmable by dip-switch
    • Frequency 433.9 MHz
    • Power supply 2 CR2016 lithium batteries
    • Radiated power 0.1 mW
    • Operating temperature -25 + 50 ° C
    • Degree of protection IP65
    • Plastic container RAL7035 with fixing slots
    • Complete with rope and knob.
  • Flush-mounted pushbutton 2 DIG
    flush-mounted pushbutton 2 DIG
    A1V0202
    • Flush-mounted pushbutton, for total command and control of the automatic door
    • Open button, partial open button and emergency mushroom button
    • Two-digit display for door monitoring and programming
    • 5m cable with industrial connector for door height up to 4m
    • 1 meter long cable for connecting the push button (A1V0051) inside the cold room
    • Degree of protection IP65
    • Operating temperature -25 + 50 ° C
    • Thermoplastic resin material and AISI-304 stainless steel.

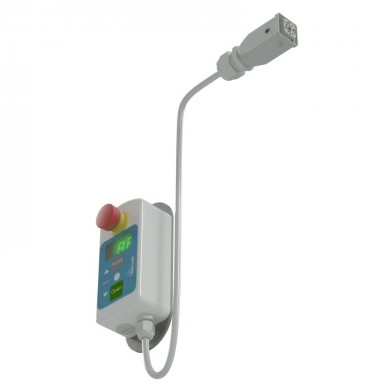

  • External pushbutton 2 DIG
    External pushbutton 2 DIG...
    A1V0204
    • Pushbutton, for total command and control of the automatic door
    • Open button, partial open button and emergency mushroom button
    • Two-digit display for door monitoring and programming
    • 5m cable with industrial connector for door height up to 4m
    • Degree of protection IP65
    • Operating temperature -25 + 50 ° C
    • Thermoplastic resin material and AISI-304 stainless steel.
  • End cap for automatic track
    End cap for automatic track
    A1X1390
    • Set of accessories to create casings to fully cover the automation, the supply does not include the sheet metal, to be created by the customer based on our design
    • Hinged opening with lock in opening, for easy maintenance
    • Facilitated cable entry thanks to the pre-drilling of the head
    • Brackets, end caps and screws in AISI-304 stainless steel
    • For doors with a width greater than 2400mm it is advisable to install the A1X1373 support bracket in the center
  • Idle belt unit
    Idle belt unit
    A1X1700
    • Ball bearing idler pinion
    • Material PA6+30%FG RAL 7039
    • Stainless steel shaft and nut
    • Operating temperature -30° +80°C
  • Idle chain 1/2 " unit
    idle chain 1/2 " unit
    A1X1750
    • Ball bearing idler pinion
    • Material PA6+30%FG RAL 7039
    • Stainless steel shaft and nut
    • Operating temperature -30° +80°C
  • Drive shaft
    K Drive shaft
    A1X1800
    • Motor shaft set
    • Stainless steel material
    • Complete with tabs, washers, nut and seeger
  • HTD8 Z24 motor pinion
    HTD8 Z24 motor pinion
    A1X1812
    • Tested pinion with high resistance and rust resistance
    • Material PA6 + 30% FG RAL 7039
    • Operating temperature -30 ° + 80° C
