Accessori fine serie

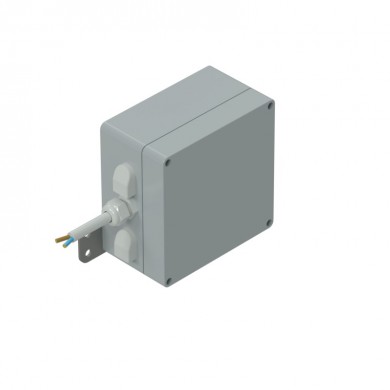

Buffer batteries
A1V0016
- Kit for the operation of the automation in the event of a black out, it consists of a container for the battery pack and a battery charger board to be installed on the A1X21F5 board
- 2 12V 3.2 Ah AGM lead gel batteries without maintenance, estimated life 3/5 years
- 25A blade fuse
- Ventilated container in plastic material, complete with cable glands and cables to be connected to the AIX21F5 series electronic board
- Operating temperature -15 + 50 ° C

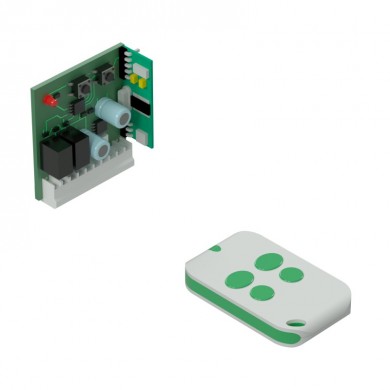

Remote control 433 MHz kit
A1V0030
- The remote control kit consists of a receiver to plug directly into the control unit, without the need for further wiring or connections and a 4-channel remote control
- Ricevitore
- Superheterodyne receiver guarantees high reliability in reception and good operation even in disturbed environments
- 100 memorable remote control codes
- Frequency 433.9 MHz
- Operating temperature -25 + 60 ° C
- Remote control
- 4-channel 12-bit fixed code remote control (1024 combinations) programmable by means of a dip-switch
- Power supply 2 CR2016 lithium batteries
- Radiated power 0.1 mW
- Operating temperature 0 + 60 ° C

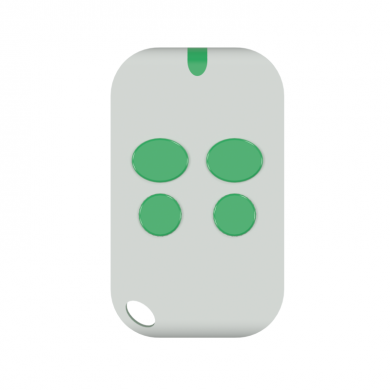

4-channel 433 MHz remote...
A1V0032
- 4-channel 12-bit fixed code remote control (1024 combinations) programmable by means of a dip-switch
- Power supply 2 CR2016 lithium batteries
- Radiated power 0.1 mW
- Operating temperature 0 + 60 ° C
Radio push button
A1V0061
- Wall remote control, 12 bit fixed code (1024 combinations) programmable by dip-switch
- Frequency 433.9 MHz
- Power supply 2 CR2016 lithium batteries
- Radiated power 0.1 mW
- Operating temperature -25 + 50 ° C
- Degree of protection IP65
- Plastic container RAL7035 with fixing slots.

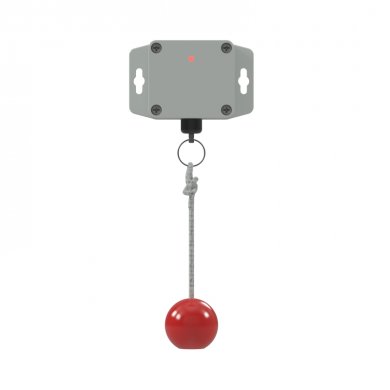

Radio pull cord
A1V0065
- Cable remote control, 12 bit fixed code (1024 combinations) programmable by dip-switch
- Frequency 433.9 MHz
- Power supply 2 CR2016 lithium batteries
- Radiated power 0.1 mW
- Operating temperature -25 + 50 ° C
- Degree of protection IP65
- Plastic container RAL7035 with fixing slots
- Complete with rope and knob.

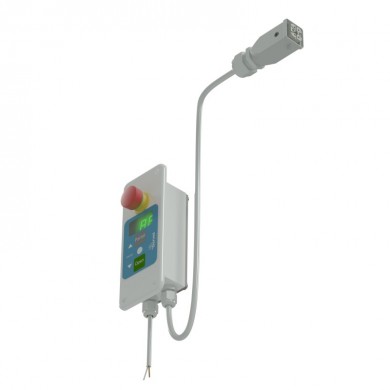

Flush-mounted pushbutton 2 DIG
A1V0202
- Flush-mounted pushbutton, for total command and control of the automatic door
- Open button, partial open button and emergency mushroom button
- Two-digit display for door monitoring and programming
- 5m cable with industrial connector for door height up to 4m
- 1 meter long cable for connecting the push button (A1V0051) inside the cold room
- Degree of protection IP65
- Operating temperature -25 + 50 ° C
- Thermoplastic resin material and AISI-304 stainless steel.
External pushbutton 2 DIG
A1V0204
- Pushbutton, for total command and control of the automatic door
- Open button, partial open button and emergency mushroom button
- Two-digit display for door monitoring and programming
- 5m cable with industrial connector for door height up to 4m
- Degree of protection IP65
- Operating temperature -25 + 50 ° C
- Thermoplastic resin material and AISI-304 stainless steel.

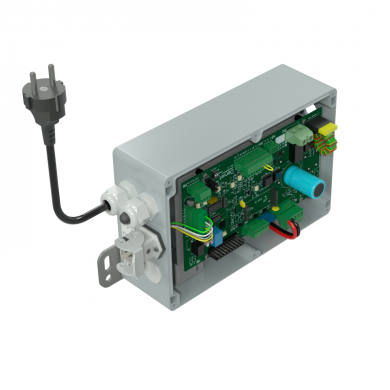

SW control panel
A1X2023
- Electronic control panel to drive the A1X24 series DC motors. A microprocessor controls the entire automation, position, slowdowns and obstacle detection via the encoder signal
- Power supply 100-240 Vac 400 VA 50/60 Hz
- Output for flashing light 24Vdc 500mA
- NO + NC programmable relay output
- PNP NPN inputs for 2 pairs of photocells
- NPN inputs for open, pedestrian and stop commands
- Network input for door interlocking
- Connector for radio receiver
- Incremental encoder input
- Serial connector for control and programming push-button panel
- Connector for connecting batteries and charging module
- Power cord with Schuko plug
- RAL7000 plastic container, complete with cable glands and industrial connector for connecting the push-button panel
- Fixing plate in AISI-304 stainless steel
- Degree of protection IP65
- Operating temperature -25 + 70 ° C
