Gear box 1:20 in painted aluminum and AISI-304 hollow shaft diameter 25
48Vdc 1200 W motor with integrated encoder
IP65 hermetic brake with manual lever release
IP65 junction box in plastic material
Stainless steel screws and fastners
Operating temperature -25 +50??C
RAN-SMART automation
New
B362634
SMART automation for roll-up doors
Maximum opening speed 250 RPM
Gear box 1:20 in painted aluminum and AISI-304 hollow shaft diameter 25
48Vdc 1200 W motor with integrated encoder
IP65 ermetic brake with manual lever release
IP65 control panel in plastic material IP65 incorporates power management, safety management and all controls for the perfect functioning of the system
External push-button panel with backlit LCD display that can be connected directly to the control panel via M12 connector
Stainless steel screws and fastners
Single-phase multi-voltage supply 100-240 V 50-60 Hz
Operating temperature -25 +60??C

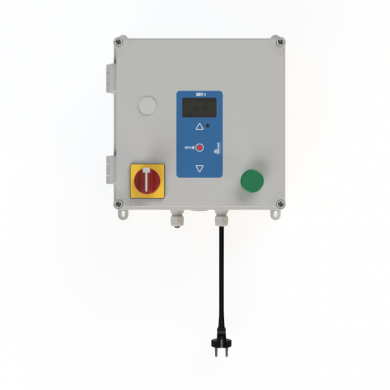

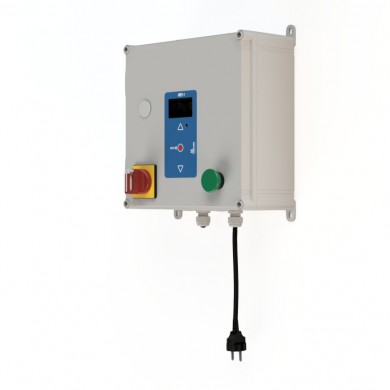

MARK-IND 48-H2 1.2 Kw...
New
B3XQ24C
MARK-IND control unit (48 VDC, 1.2 kW) integrating power management, safety systems, and all controls for optimal system operation
Internal space is provided for a supercapacitor-based uninterruptible power supply (UPS) to ensure a limited number of opening cycles during a power outage
IP65-rated 300x300 mm ABS plastic enclosure
Programming and control keypad with OLED graphic display
Lockable disconnect switch
Open command button
Stainless steel hardware
Multi-voltage single-phase power supply (100???240 V, 50???60 Hz)
