Scorrevoli

Belt PANDA-H automation
A1X1422
- Automation kit for single leaf sliding refrigerated doors, designed to be applied above the sliding guide of the existing door
- Maximum leaf weight 300 Kg
- Maximum speed 0.5 m / "
- HTD8 toothed belt drive ( UPC8N15 7 meters)
- 1:10 gear reducer in painted aluminum and AISI-304 stainless steel hollow shaft (URO5210)
- 350 W DC motor with integrated encoder (A1X2470)
- Electronic panel in plastic IP65 (A1X2023)
- 2 DIG external pushbutton panel that can be directly connected to the control panel via an industrial connector (A1V0204)
- Motor and transmission assembly fixing plates, reversible for right or left door in galvanized steel
- Door driver in galvanized steel
- Stainless steel bolts
- Single-phase power supply 100-240 V 50-60 Hz
- Operating temperature -25 +50° C
Chain PANDA-H automation
A1X1424
- Automation kit for single leaf sliding refrigerated doors, designed to be applied above the sliding guide of the existing door
- Maximum leaf weight 300 Kg
- Maximum speed 0.5 m / "
- 1/2" chain (UMC0N08 10 meters)
- 1:10 gear reducer in painted aluminum and AISI-304 stainless steel hollow shaft (URO5210)
- 350 W DC motor with integrated encoder (A1X2470)
- Electronic panel in plastic IP65 (A1X2023)
- 2 DIG external pushbutton panel that can be directly connected to the control panel via an industrial connector (A1V0204)
- Motor and transmission assembly fixing plates, reversible for right or left door in galvanized steel
- Door driver in galvanized steel
- Stainless steel bolts
- Single-phase power supply 100-240 V 50-60 Hz
- Operating temperature -25 +50° C
PANDA-H 2-leaf BELT automation
A1X1426
- Automation kit for double leaf sliding refrigerated doors, designed to be applied above the sliding guide of the existing door
- Maximum single leaf weight 150 Kg
- Maximum speed 1.0 m / "
- HTD8 toothed belt drive (7 meters)
- 1:10 gear reducer in painted aluminum and AISI-304 stainless steel hollow shaft
- 350 W DC motor with integrated encoder (A1X2470)
- Electronic panel in plastic IP65 (A1X2023)
- 2 DIG external pushbutton panel that can be directly connected to the control panel via an industrial connector (A1V0204)
- Motor and transmission assembly fixing plates, reversible for right or left door in galvanized steel
- Double door driver in galvanized steel
- Stainless steel bolts
- Single-phase power supply 100-240 V 50-60 Hz
- Operating temperature -25 +50° C
PANDA-H 2-leaf chain...
A1X1428
- Automation kit for double leaf sliding refrigerated doors, designed to be applied above the sliding guide of the existing door
- Maximum single leaf weight 150 Kg
- Maximum speed 1.0 m / "
- 1/2" chain (10 meters)
- 1:10 gear reducer in painted aluminum and AISI-304 stainless steel hollow shaft
- 350 W DC motor with integrated encoder (A1X2470)
- Electronic panel in plastic IP65 (A1X2023)
- 2 DIG external pushbutton panel that can be directly connected to the control panel via an industrial connector (A1V0204)
- Motor and transmission assembly fixing plates, reversible for right or left door in galvanized steel
- Double door driver in galvanized steel
- Stainless steel bolts
- Single-phase power supply 100-240 V 50-60 Hz
- Operating temperature -25 +50° C
H automation 1:10
A1X1440
- Automation kit for sliding door
- 1:10 gear reducer in painted aluminum and AISI-304 stainless steel hollow shaft (URO5210)
- 350 W DC motor with integrated encoder (A1X2470)
- Electronic panel in plastic IP65 (A1X2023)
- 2 DIG external pushbutton panel that can be directly connected to the control panel via an industrial connector (A1V0204)
- Stainless steel bolts
- Single-phase power supply 100-240 V 50-60 Hz
- Operating temperature -25 +50°C
H automation
A1X1442
- Automation kit for sliding door
- 350 W DC motor with integrated encoder (A1X2470)
- Electronic panel in plastic IP65 (A1X2023)
- 2 DIG external pushbutton panel that can be directly connected to the control panel via an industrial connector (A1V0204)
- Stainless steel bolts
- Single-phase power supply 100-240 V 50-60 Hz
- Operating temperature -25 +50°C
ROMAIN-H belt automation
A1X1F21
- Automation kit for single leaf sliding refrigerated doors, designed to be applied above the sliding guide of the existing door
- Maximum leaf weight 250 Kg
- Maximum speed 0.5 m/"
- HTD8 toothed belt drive (8 meters)
- 1:10 gear reducer in painted aluminum and AISI-304 stainless steel hollow shaft
- 350 W DC motor with integrated encoder (A1X2470)
- Electronic panel in plastic IP65 (A1X2023)
- 2 DIG external pushbutton panel that can be directly connected to the control panel via an industrial connector (A1V0204)
- Motor transmission, assembly fixing plates and door driver, reversible for right or left door in AISI-304 stainless steel
- Stainless steel bolts
- Single-phase power supply 100-240 V 50-60 Hz
- Operating temperature -25 +50° C

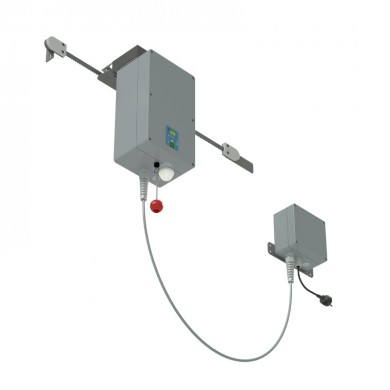

GECKO 1:10 automation
A1X2622
- Sliding automation for refrigerator doors
- Innovative solution fixed to the door edge that is dragged along a single 5-meter toothed belt section
- IP65 plastic container which houses the gearmotor, the control electronics, the transmission and the belt tensioner
- Maximum leaf weight 100 Kg
- Maximum speed 0.3 m / "
- Adjustable for leaf thickness from 60 to 105mm
- Planetary reduction gear ratio 1:10
- 150 W DC motor with integrated encoder (A1X2455)
- 24V DC control unit (A1X21F5)
- 433 MHz receiver for radio control
- Display and push-button panel for control and programming
- On-board LED flashing light (A1X4710)
- On-board cable push-button
- Extra-flexible cable for connection to the power supply panel
- Power supply 100-240 Vac 200 VA 50/60 Hz
- Protection degree IP65
- Temperature -10 + 50 ° C
- Articulated plates for anchoring the belt to the door frame in AISI-304 stainless steel
- Transmission and structure in AISI-304 stainless steel.
