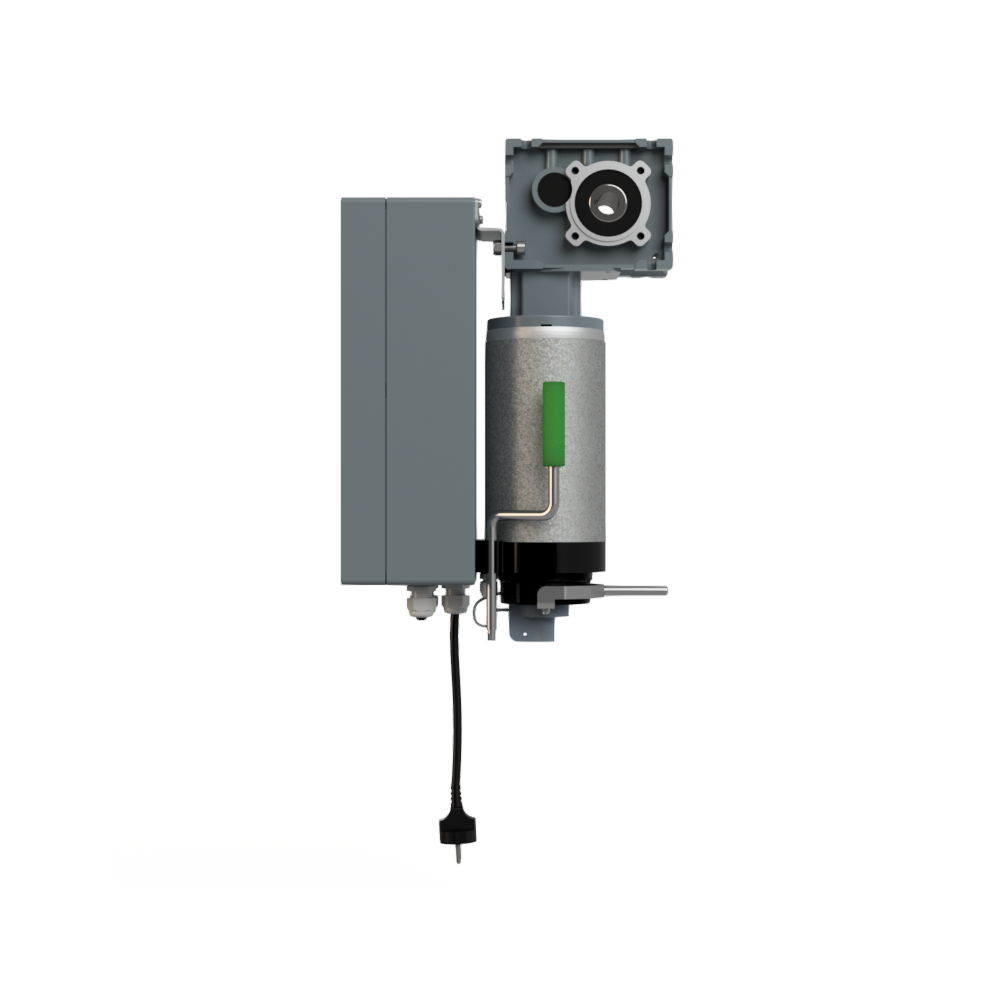

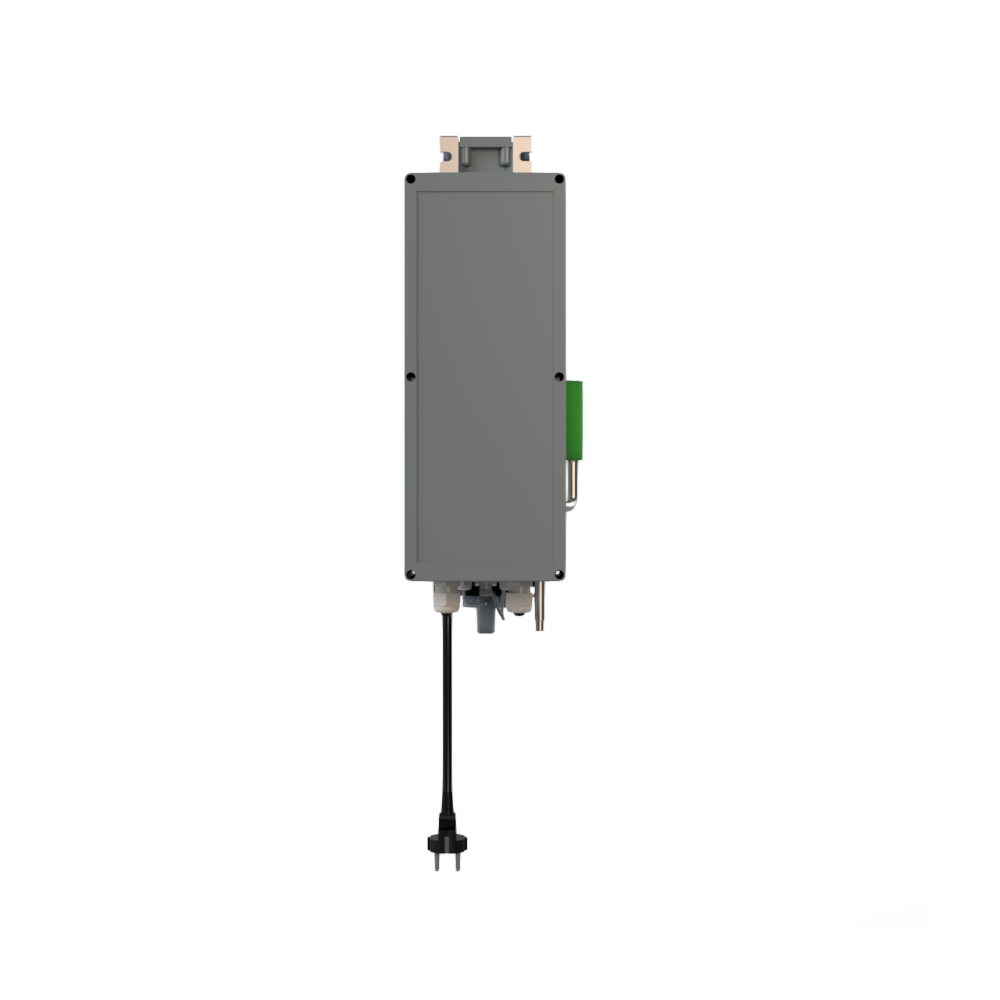

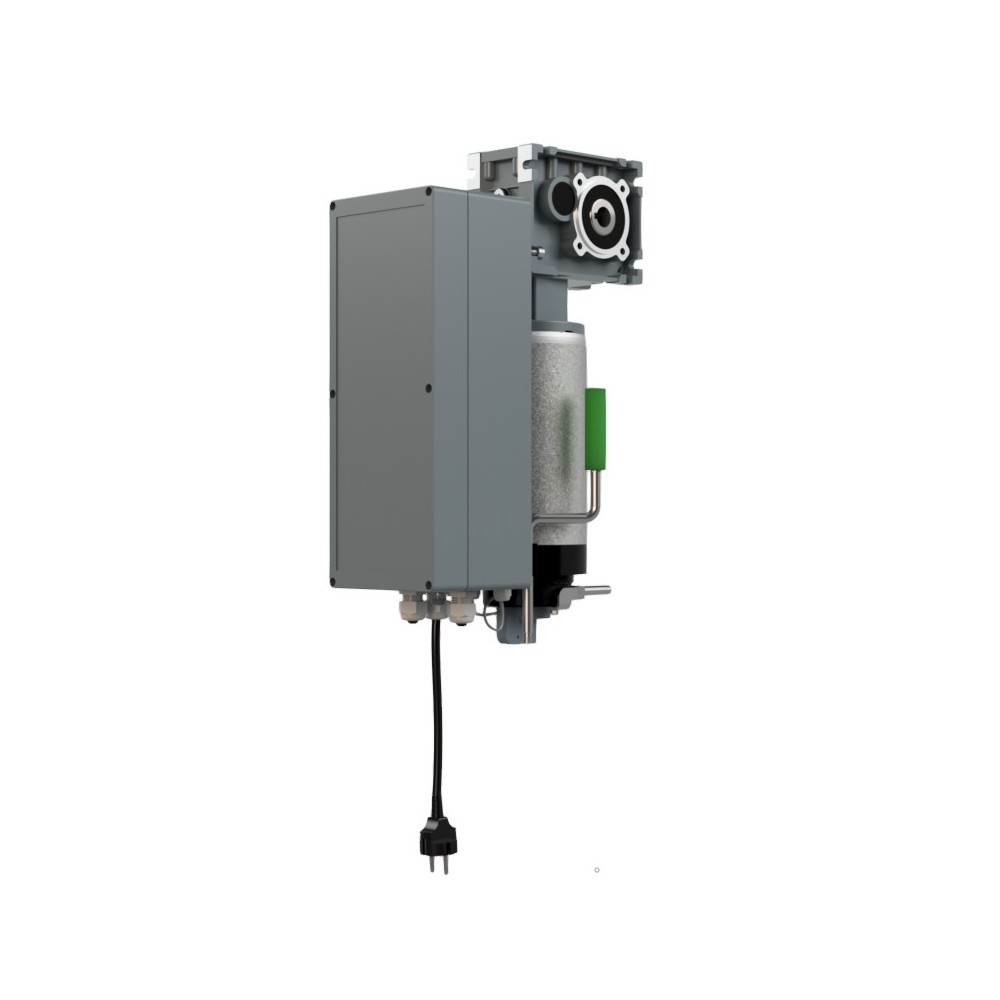

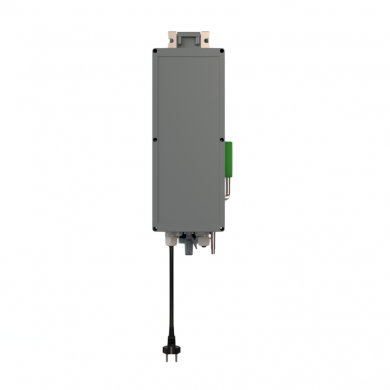

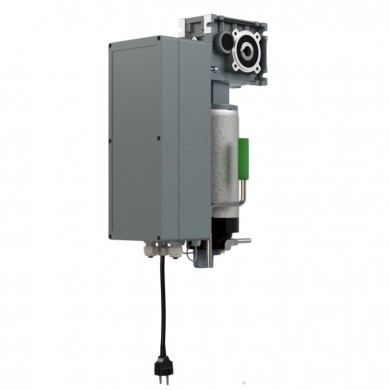

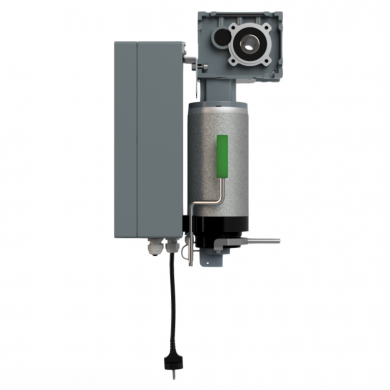

MARK-SMART 48 1.0 KW B 1:20 Automation
B354A52
- SMART automation for roll-up doors
- Maximum opening speed 250 RPM
- Gear box 1:20 in painted aluminum and AISI-304 hollow shaft diameter 25
- 48Vdc 1000 W motor with integrated absolute encoder
- IP65 ermetic brake with manual lever release
- IP65 control panel in plastic material IP65 incorporates power management, safety management and all controls for the perfect functioning of the system
- External push-button panel with OLED display that can be connected directly to the control panel via M12 connector
- Stainless steel screws and fastners
- Single-phase multi-voltage supply 100-240 V 50-60 Hz
- Operating temperature -25 +60°C
Download
Dimensions
