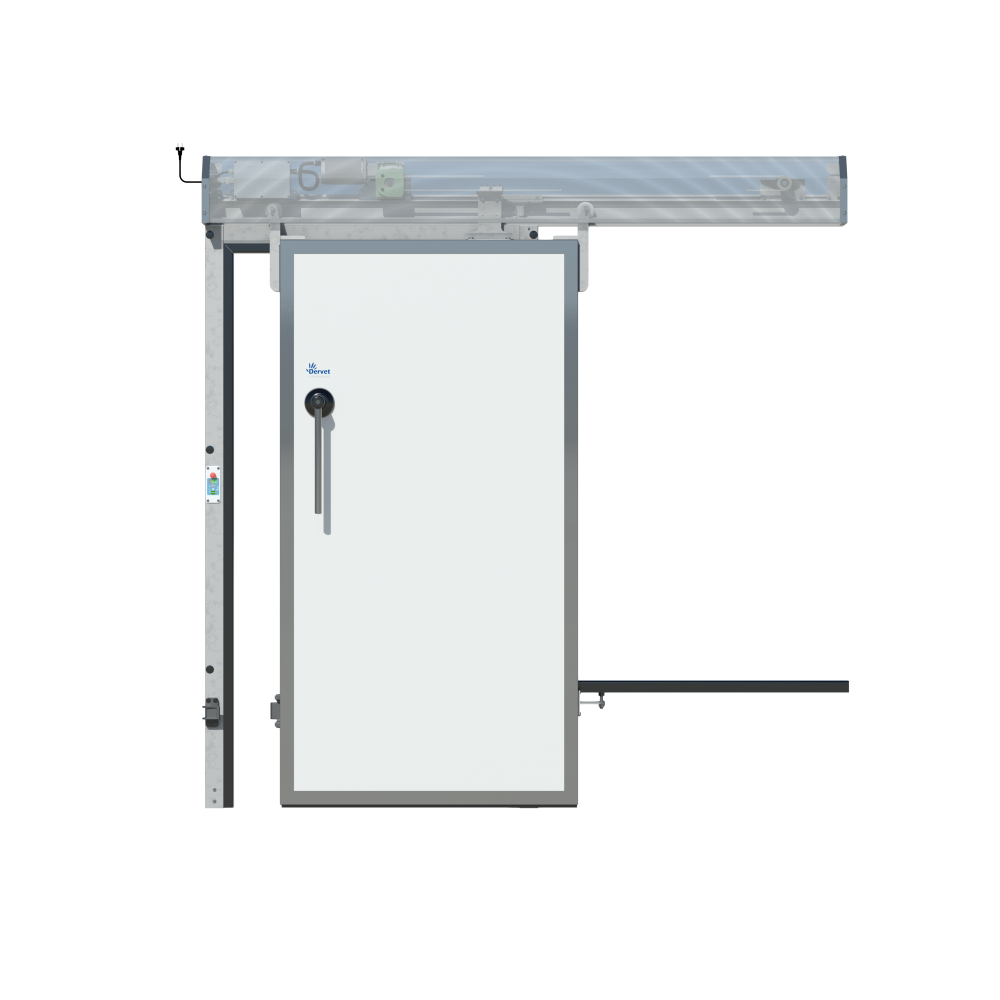

SA automatic sliding cooler door 0°C

A13000N

Sliding door designed to close large sized cold rooms with positive temperature, for uses where an excellent hermetic and thermal seal is required together with sturdiness and reliability, version for panel or masonry mounting. The particular constructive shape of the track ensures that when closing the door it lowers and approaches the frame, pressing the gaskets and guaranteeing the perfect sealing of the door
Door thickness 80mm in polystyrene density 33 kg/mc
Door edge in AISI304 steel
Faces in white fiberglass

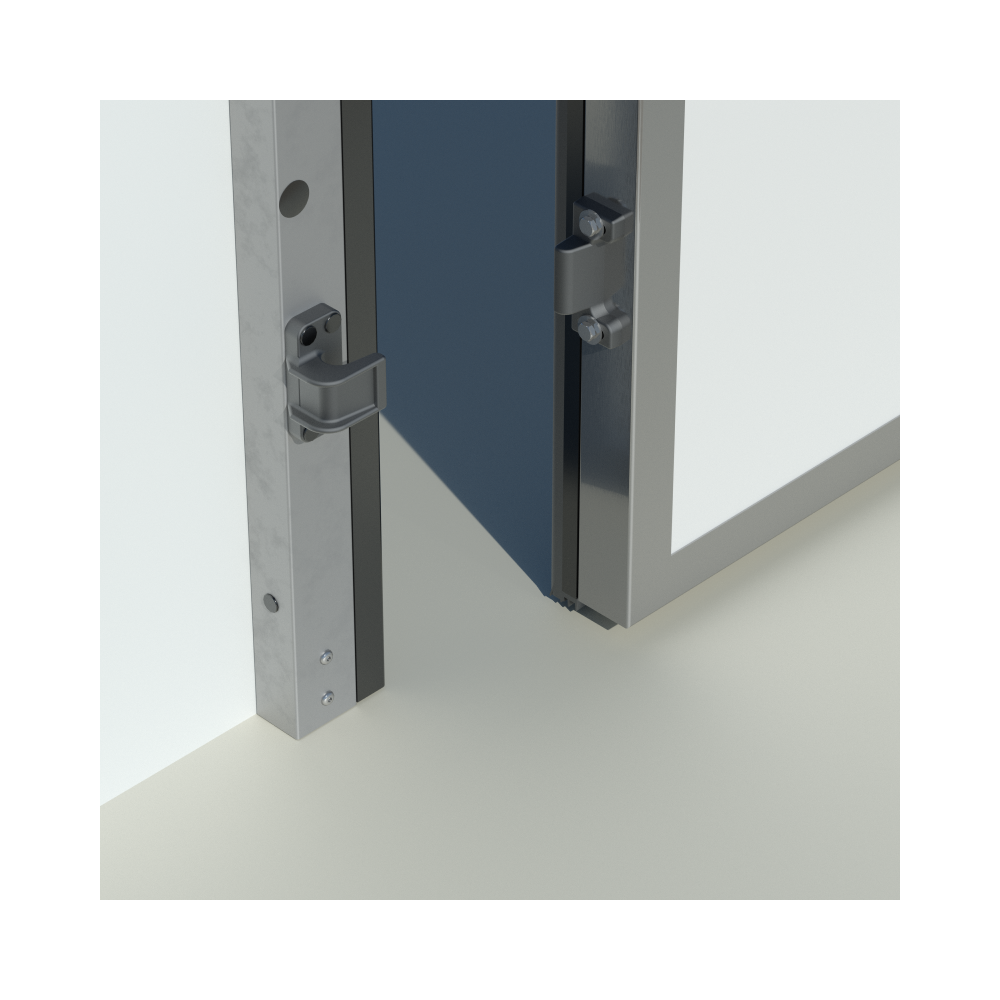

Frame with thermal break in AISI304 steel

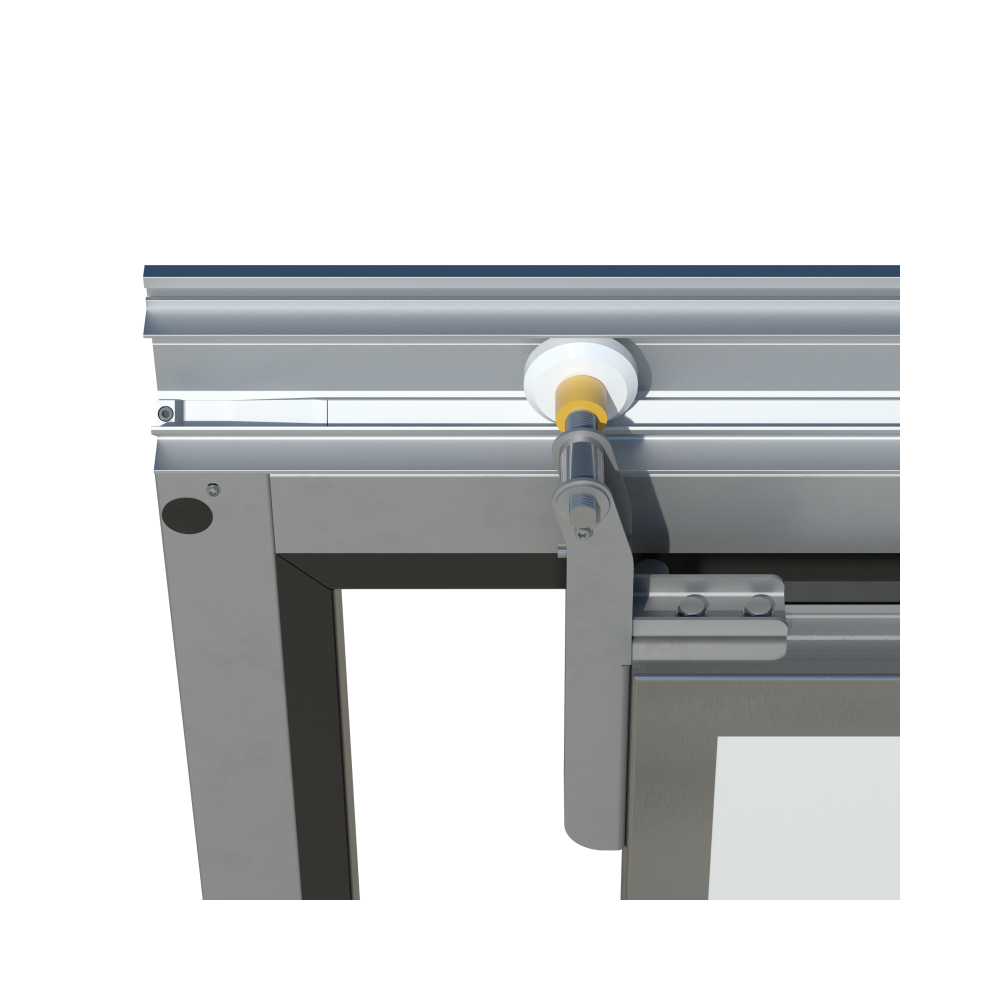

Rail in anodized aluminum

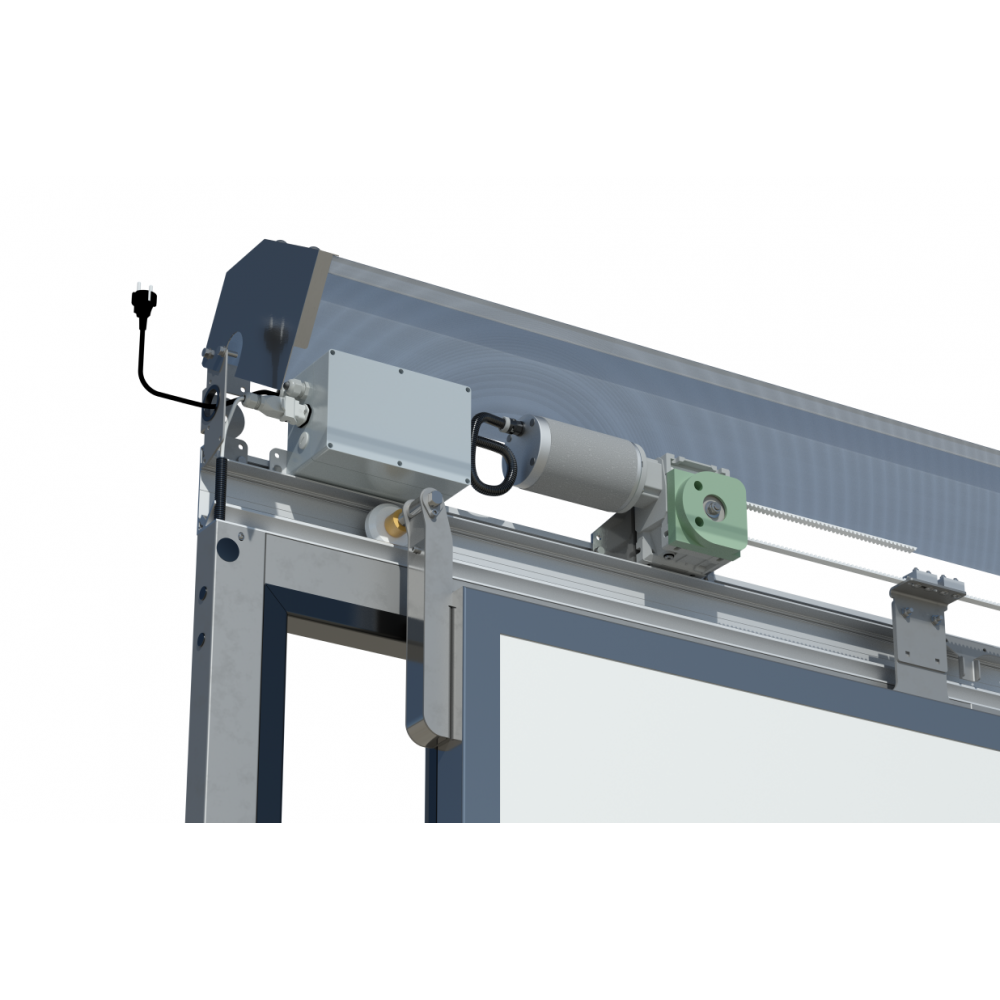

24Vdc automation that controls correct positioning, slowdown and obstacle detection

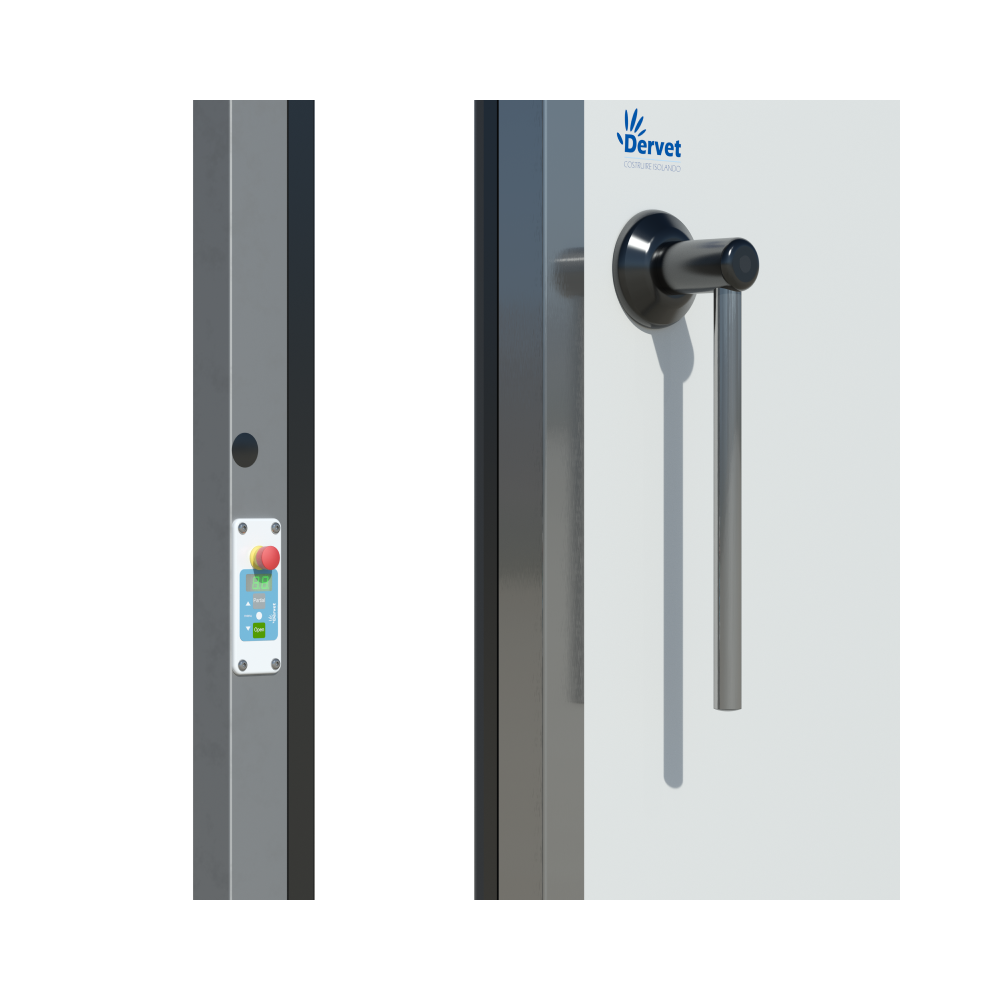

IP65 control pushbutton panel embedded in the door frame with display, single-phase power supply 100-240 V 50-60 Hz
IP65 pushbutton inside the cold room
IP65 electrical panel mounted in the rail, pre-wired and ready to use

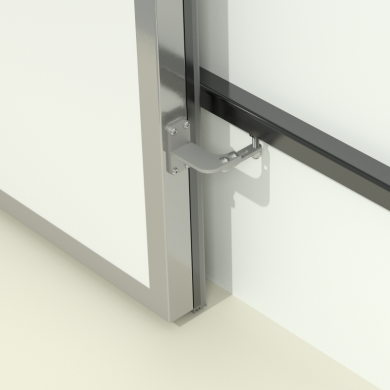

IP67 photocells pre-wired and embedded in the framerear guide raised 500mm from the floor
Connection bended sheets in AISI304 steel for walls up to thickness 100mm
SN0 Flush floor threshold
Hardware and bolts in AISI304 steel and thermoplastic resin.

DIM-A13000N

Dimensions
