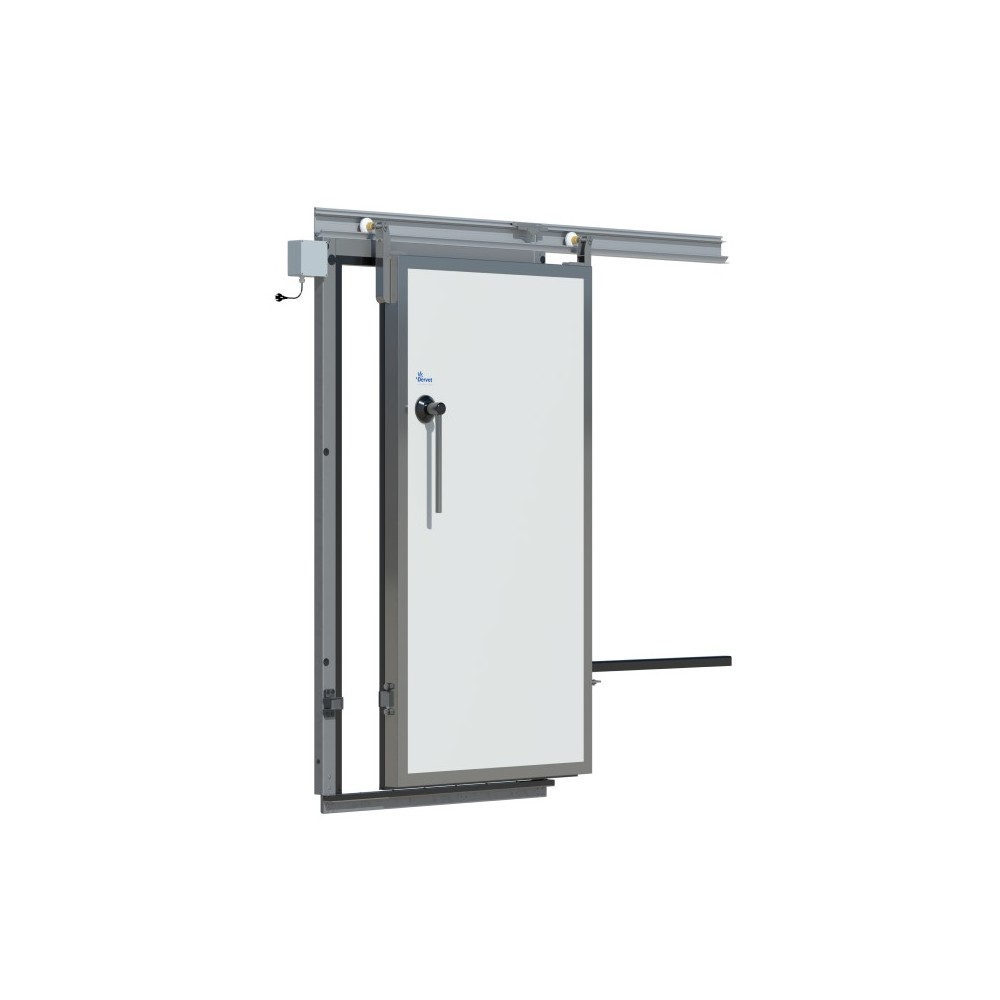

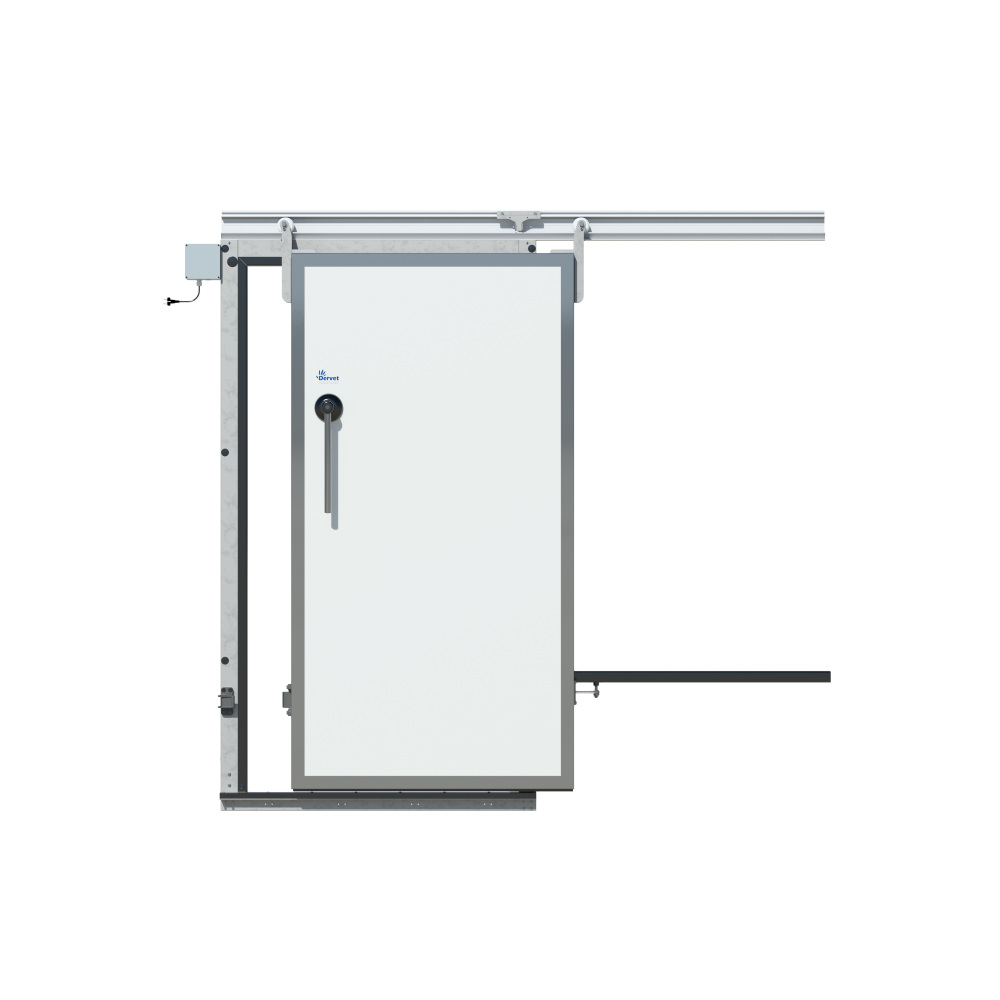

SBT Manual sliding freezer door -25°C
A1300BA
- The ideal solution for large cold rooms, where robustness and reliability are required. The particular constructive shape of the rail ensures that when closing the door it lowers and approaches the frame, pressing the gaskets and guaranteeing the perfect sealing of the door
- Door thickness 100mm in polystyrene density 33 kg/mc
- Door edge in AISI304 steel
- Faces in white fiberglass
- Frame with thermal break in AISI304 steel

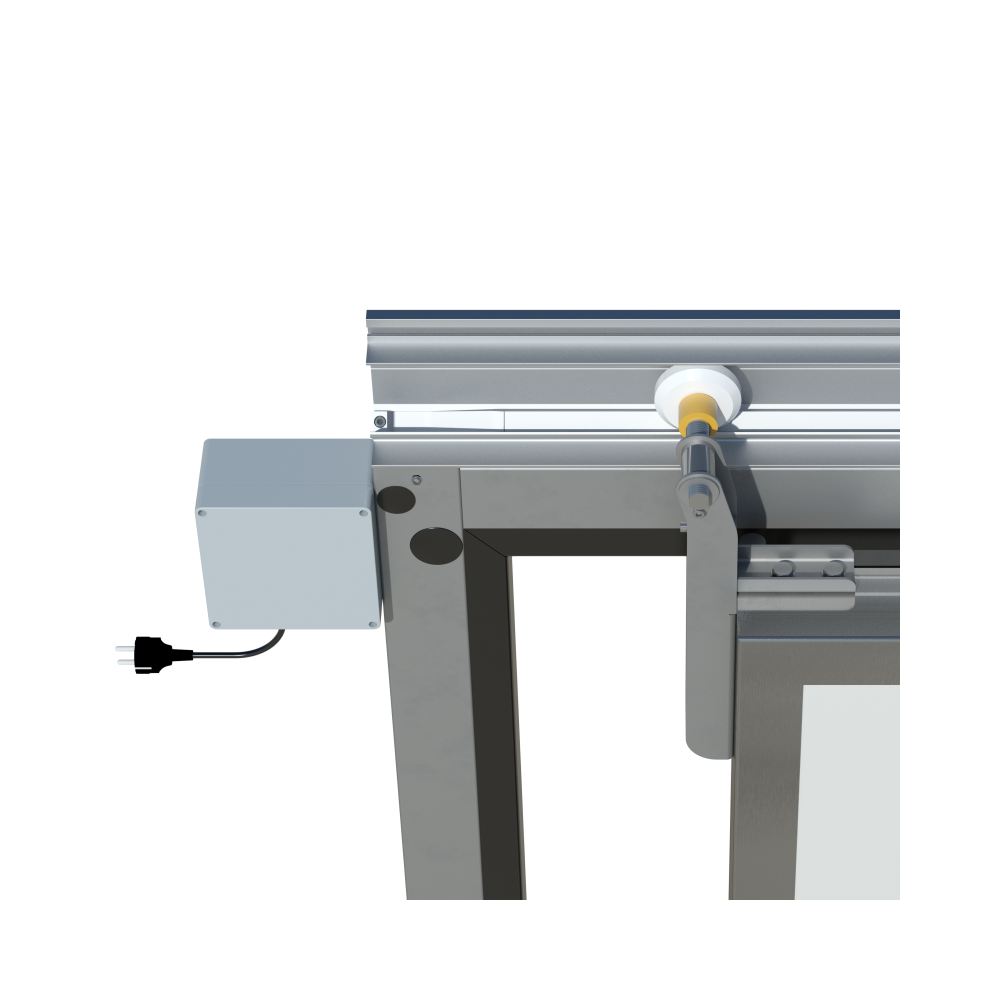

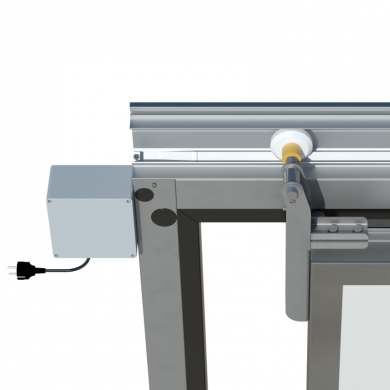

- Rail in anodized aluminum

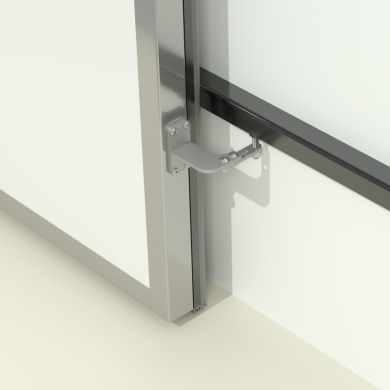

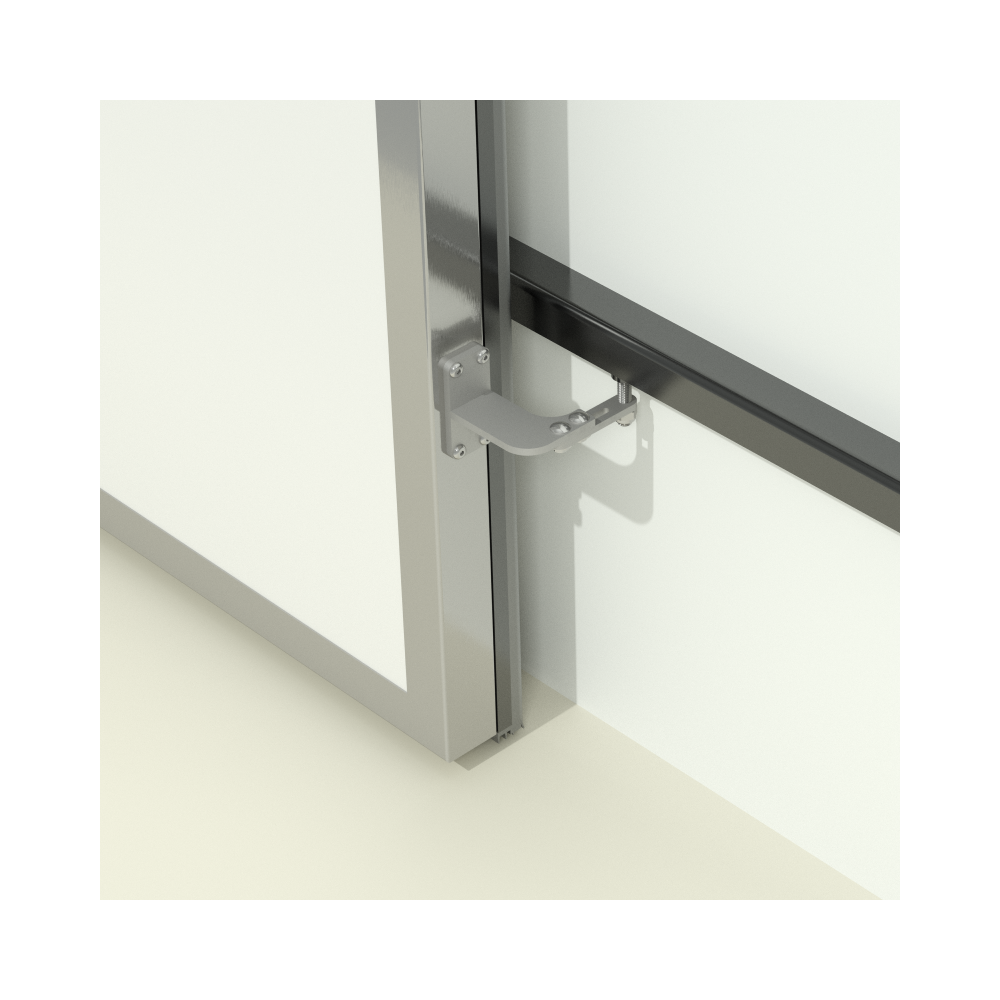

- Rear guide raised 500mm from the floor
- Connection bended sheets in AISI304 steel for walls up to thickness 200mm

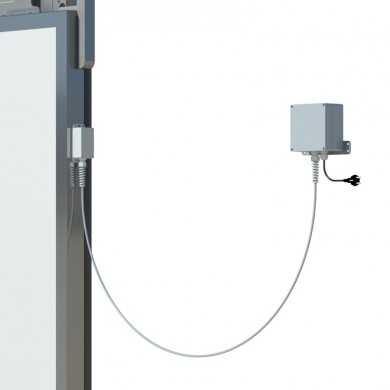

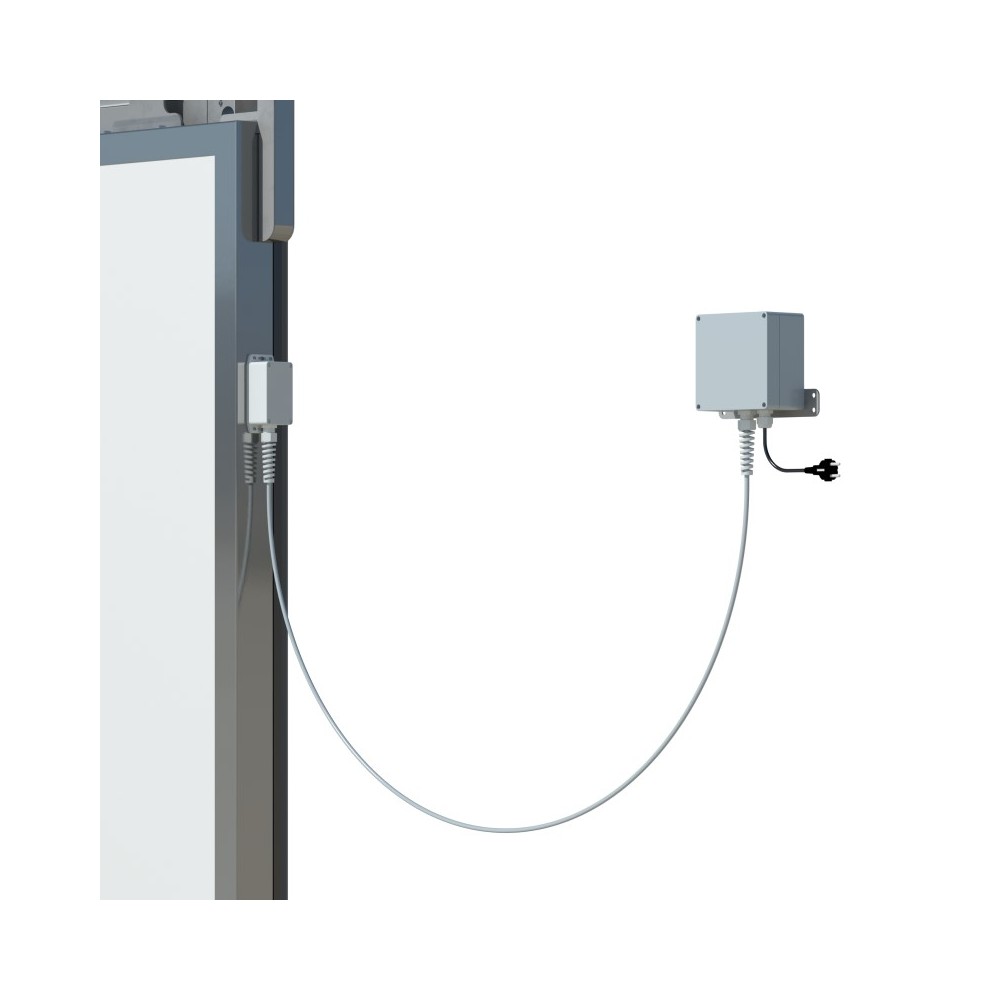

- 24V heating cable inserted in the frame

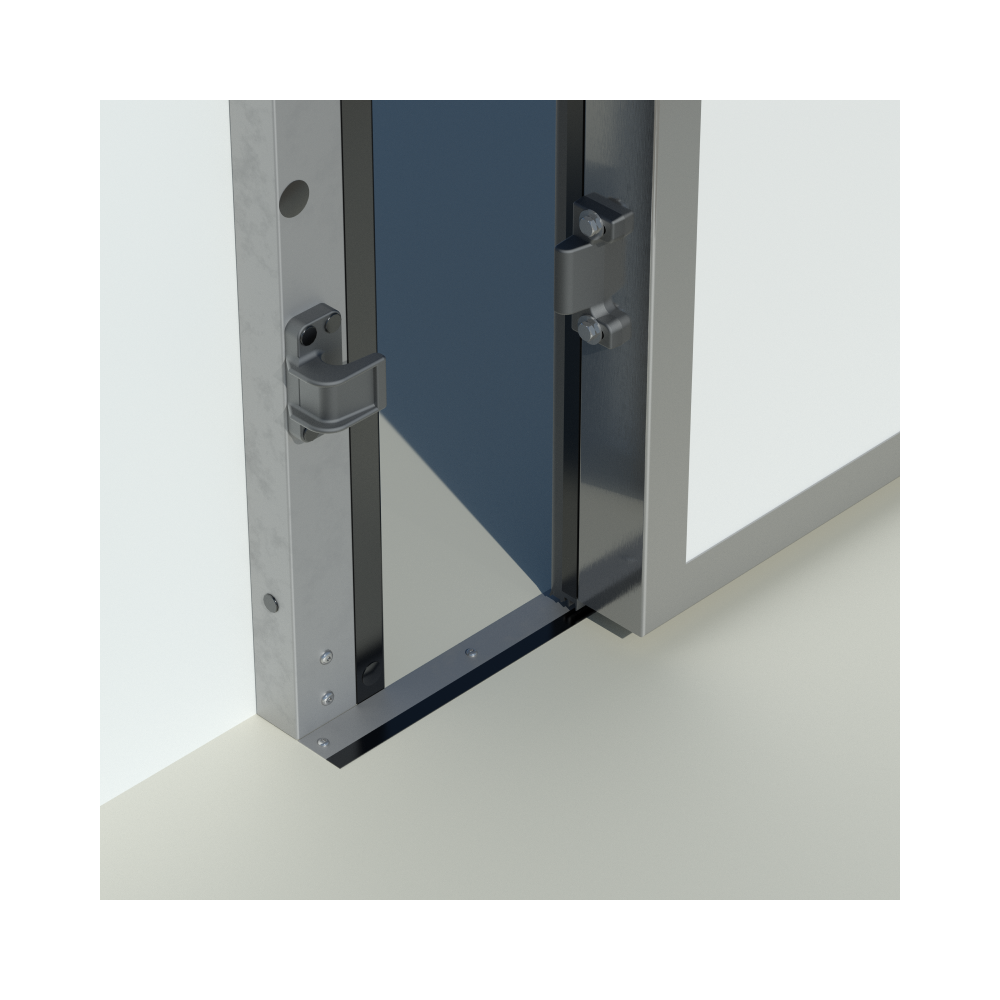

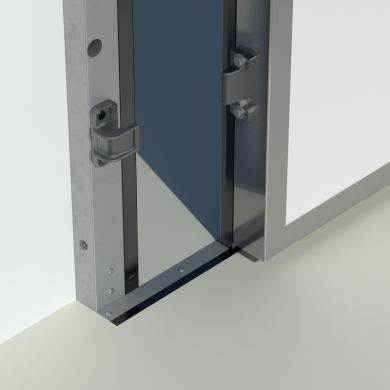

- SB1 flush floor threshold with double 24V heating cable
- Hardware and bolts in AISI304 steel and thermoplastic resin.
