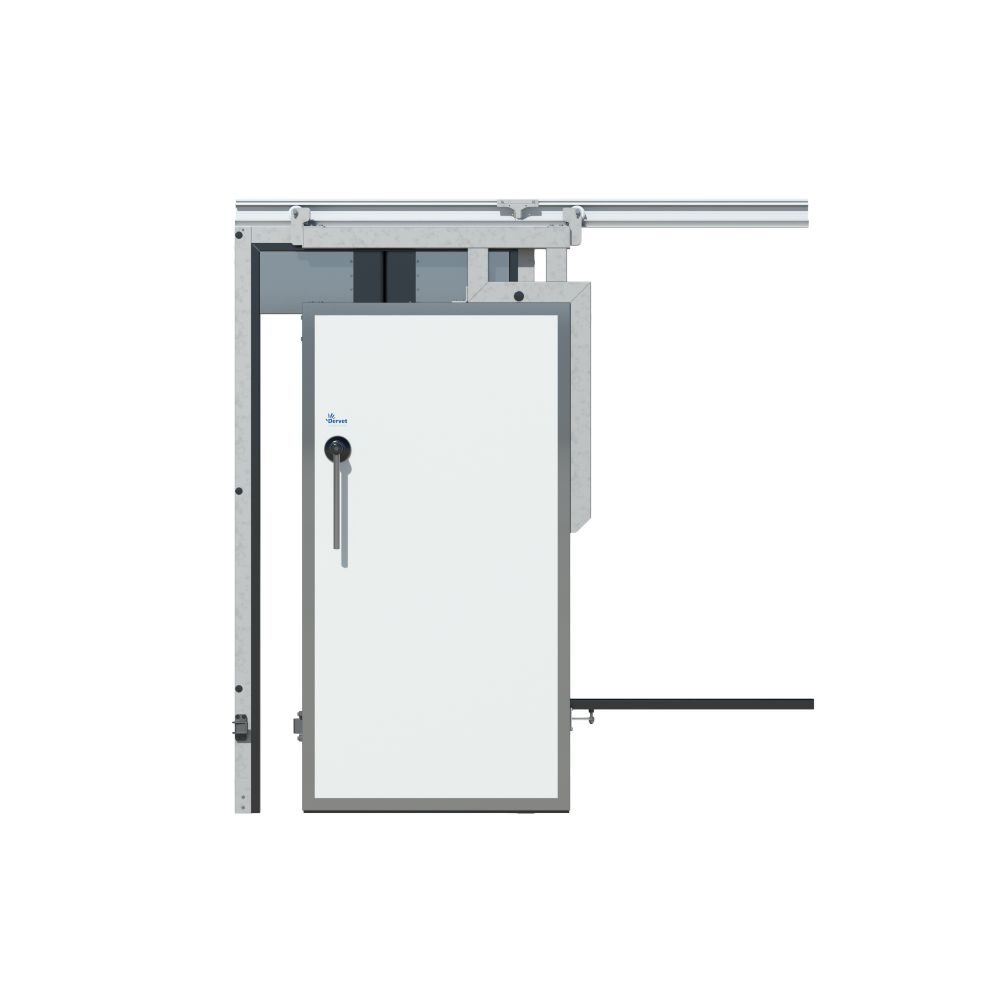

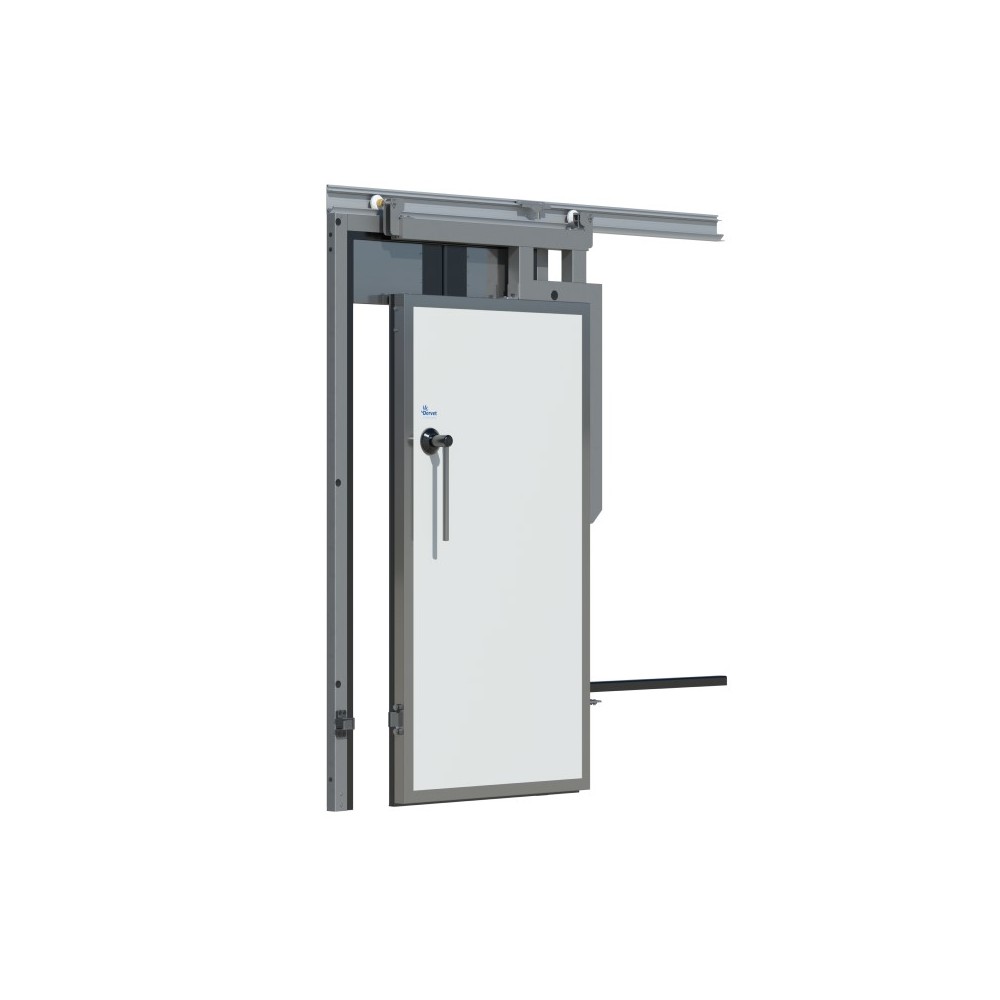

SBIN manual sliding door 0°C for meat rail

A1L000C

The ideal solution for large cold rooms, where robustness and reliability are required. The particular constructive shape of the rail ensures that when closing the door it lowers and approaches the frame, pressing the gaskets and guaranteeing the perfect sealing of the door
Manual sliding door with meat rail passage

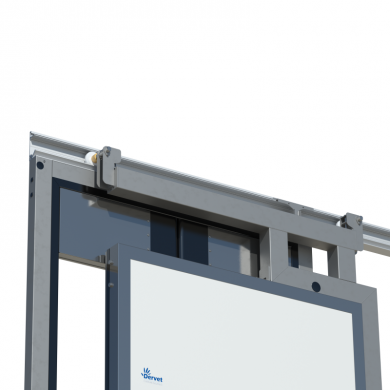

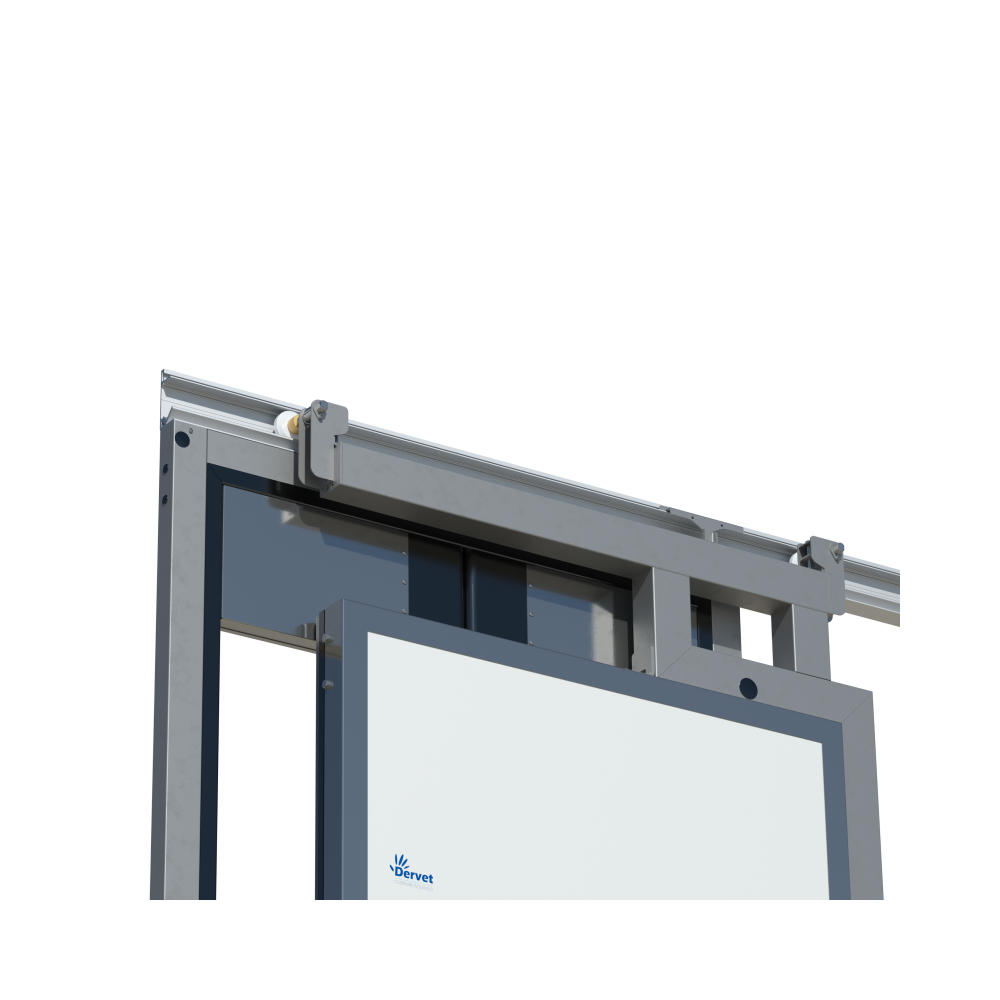

Gooseneck system that allows the passage of the rail without interruption
Door thickness 80mm in polystyrene density 33 kg/mc
Door edge in AISI304 steel
Faces in white fiberglass
Frame with thermal break in AISI304 steel

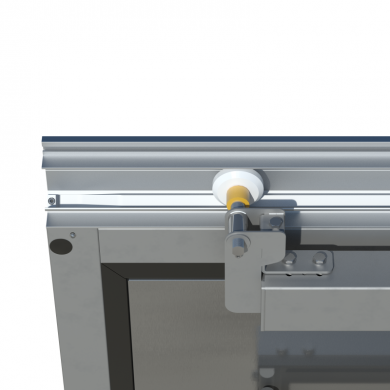

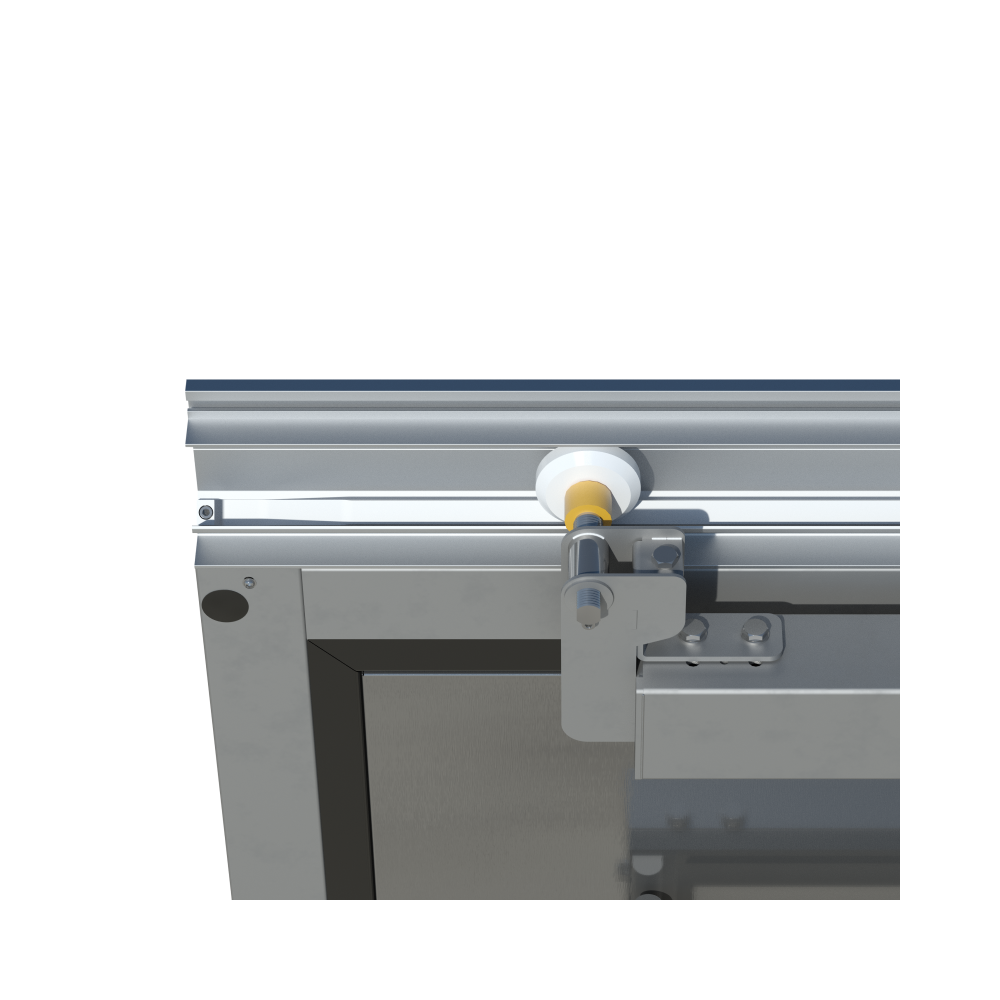

Rail in anodized aluminum

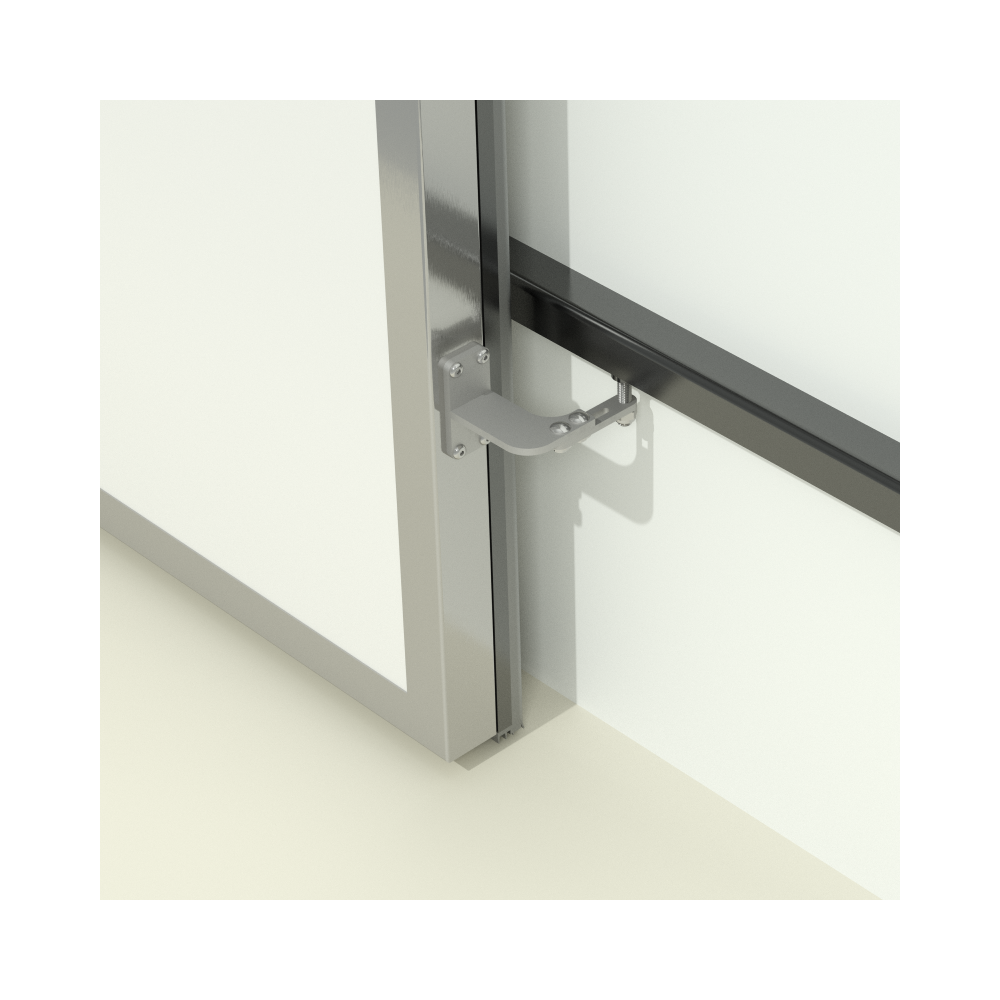

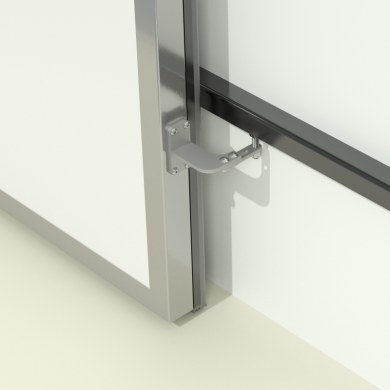

Rear guide raised 500mm from the floor
Connection bended sheets in AISI304 steel for walls up to thickness 100mm
SN0 Flush floor threshold
Hardware and bolts in AISI304 steel and thermoplastic resin.

DIM-A1L000C

Dimensions
