Automation Kits

Automation kits designed for refrigeration doors with attention to the food sector for the stainless materials used, reversible components for right or left doors, usable all over the world as single-phase multivoltage.

GECKO 1:16 automation
A1X2624
- Sliding automation for refrigerator doors
- Innovative solution fixed to the door edge that is dragged along a single 5-meter toothed belt section
- IP65 plastic container which houses the gearmotor, the control electronics, the transmission and the belt tensioner
- Maximum leaf weight 160 Kg
- Maximum speed 0.18 m / "
- Adjustable for leaf thickness from 60 to 105mm
- Planetary reduction gear ratio 1:10
- 150 W DC motor with integrated encoder (A1X2455)
- 24V DC control unit (A1X21F5)
- 433 MHz receiver for radio control
- Display and push-button panel for control and programming
- On-board LED flashing light (A1X4710)
- On-board cable push-button
- Extra-flexible cable for connection to the power supply panel
- Power supply 100-240 Vac 400 VA 50/60 Hz
- Protection degree IP65
- Temperature -10 + 50 ° C
- Articulated plates for anchoring the belt to the door frame in AISI-304 stainless steel
- Transmission and structure in AISI-304 stainless steel.
RAN-SMART automation
B3XAA20
- SMART automation for roll-up doors
- Maximum opening speed 250 RPM
- Gear box 1:20 in painted aluminum and AISI-304 hollow shaft diameter 25
- 48Vdc 1200 W motor with integrated encoder
- IP65 ermetic brake with manual lever release
- IP65 control panel in plastic material IP65 incorporates power management, safety management and all controls for the perfect functioning of the system
- External push-button panel with backlit LCD display that can be connected directly to the control panel via M12 connector
- Stainless steel screws and fastners
- Single-phase multi-voltage supply 100-240 V 50-60 Hz
- Operating temperature -25 +60°C

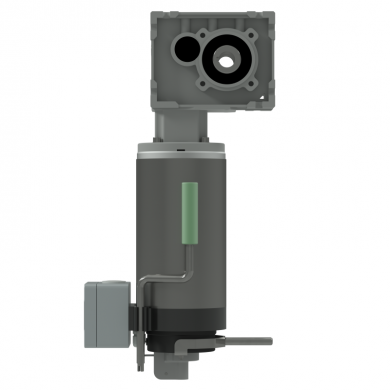

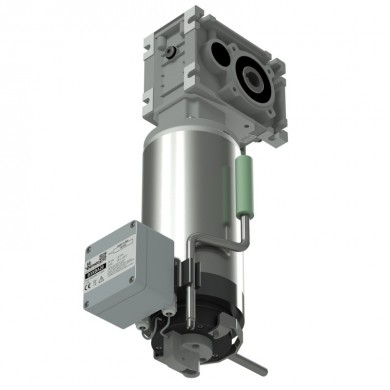

Drive RAN-IND 1.2 KW
B3XBA20
- Drive for roll-up doors
- Maximum opening speed 250 RPM
- Gear box 1:20 in painted aluminum and AISI-304 hollow shaft diameter 25
- 48Vdc 1200 W motor with integrated encoder
- IP65 hermetic brake with manual lever release
- IP65 junction box in plastic material
- Stainless steel screws and fastners
- Operating temperature -25 +50°C

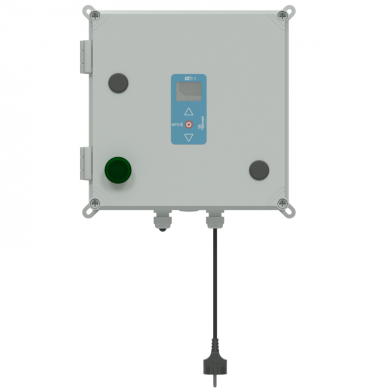

RAN-IND 1.2 kW Control panel
B3XBQ00
- Control panel for RAN-IND drive at 48 Vdc
- Incorporates power management, safety management and all controls for the perfect functioning of the system, inside there is space for the installation of a UPS using the "super capacitors" that guarantee some openings in the event of a blackout
- IP65 plastic container
- Programming and control keypad with backlit LCD display
- Stainless steel bolts
- Single-phase multi-voltage power supply 100-240 V 50-60 Hz
- Operating temperature -25 +50° C
